Product 2595/2863
1,package included:

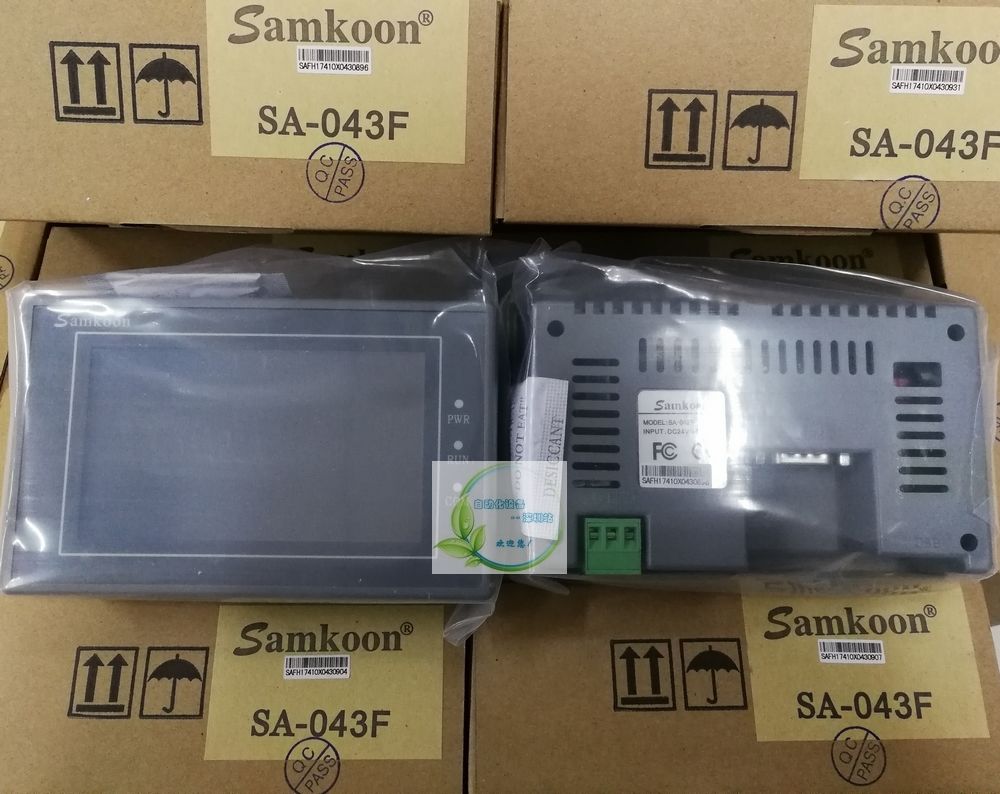

SA-043F humanmachine interface HMI touch screen new in box;
programming cable(Only offer it free when you askfor after order. Not ship it default. The communication cable is not included,if you need, please contact us and inquiry it)
The software is free(we can send it by email if youcan’t download it by yourself)
The SA-4.3A screen was discontinued since April 1,2017 and replaced by the new SA-043F model!
2, Performance specification
SA-4.3A Key Technical Parameters
Model
SA-043F
Display Size
4.3”(length : width=16:9)
Resolution
480 x 272
Brightness
400 cd/m2
Contrast
400 : 1
color
262, 144 color
Backlight
LED
Control panel
4-wire high-precision electric resistance touch screen
COM
1 X COM (RS232, RS422, RS485)
USB download port USB Device
YES
USB port USB Host
None
Ethernet port
SD card
Storage
128M FLASH + 128M DDR2
CPU
32-bit 600MHz RISC
Supply power
DC: 24V (±15%),6W
Power consumption
3W
FCC compatibility
FCC, Class A
Pressure-proof test
6KV
CE certification
EN55022 EN55024
Operation temperature
-100~650
Operation humidity
10~90%RH( no condensation)
Shockproof degree
10-25Hz( X Y Z dimension 2G/30 minutes)
Protection Level
IP65( front panel)
Curst material
Engineering plastic ABS + PC
External size
138 x 86 x 38 (mm)
Installed portiforium size
132 x 80 (mm)
weight
About 0.2kg
Configuration software
SATool
