1,package
included:

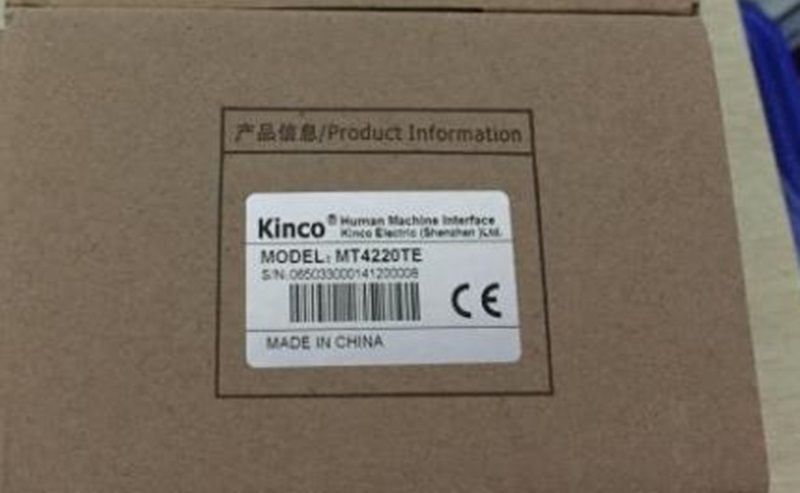

MT4220TE human machine interface HMI touch screen newin box;
programming cable(Only offer it free when you askfor after order. Not ship it
default. The communication cable is not included,if you need, please contact us
and inquiry it)
The
software is free(we can send it by email if youcan’t download it by yourself)
2,
KincoMT4220TE HMI
Display：4.3″TFT
Color：65536 Colors
Memory：128M FLASH + 64M SDRAM
3,Performance
specification
|
Display
|
4.3" TFT(16:9W)
|
|
Resolution
|
480*272
|
|
Color
|
65536
|
|
Backlight
|
LED
|
|
Brightness
|
300cd/m2
|
|
Backlight life
|
50000 hours
|
|
Touch Panel
|
4-wire precision resistance
network
|
|
Processor
|
32-bit 800MHz RISC
|
|
Memory
|
128M FLASH + 64M SDRAM
|
|
Expandable memory
|
1 USB Host, 1 SD Card
|
|
Recipe memory & RTC
|
512KB + RTC
|
|
Printer port
|
USB Host/Slave/Serial port
|
|
Ethernet
|
Support
|
|
Program download
|
USB SLAVE/Serial port/Ethernet
port
|
|
COM port
|
COM0:RS232/RS485-2/4,
COM2:RS232
|
Guarantee:1 year quality warranty.
