PWS6600S-S HITECH HMI Touch Screen 5.7inch 320*240 new in box

Model: PWS6600S-S
Shipping Weight: 1g
28 Units in Stock

£136.04
Sale: £112.91
Save: 17% off

Add to Cart:

1,package included:

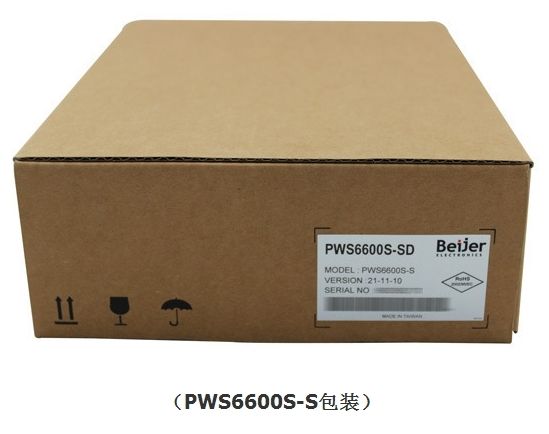

PWS6600S-S human machine interface HMI touch screennew in box;

programming cable(Only offer it free when you askfor after order. Not ship it default. The communication cable is not included,if you need, please contact us and inquiry it)

The software is free(we can send it by email if youcan’t download it by yourself)

2, Performance specification

Item	PWS6600S-S
Display Type	Mono STN LCD
Display Color	16 shades of blue
Display Size	5.7” (diagonal); display area is 117.2 X 88.4mm
Number of Pixels	320x240; Number of 8x8 characters displayable is 40x30.
Display Adjustment	Via touch panel & VR on the back
Back Light	CCFT; Lifetime 50,000 hours @25 ºC
Touch Screen	Analog
Keypad	1 “Menu” key and 5 user-defined Function keys (F1 ... F5)
Keypad Pressure & Lifetime	350±50gf operating force, Lifetime is over 1 million activations.
Input Power	24VDC±15% ; less than 20W
Flash ROM	4M bytes
RAM	512 K bytes
CPU	32 bits RISC
Battery Backed Memory	512 K bytes
RTC	Yes (w/Replaceable Lithium Battery) Notice: When using the machine for the first time, please remember to reset RTC.
Data/Recipe	—

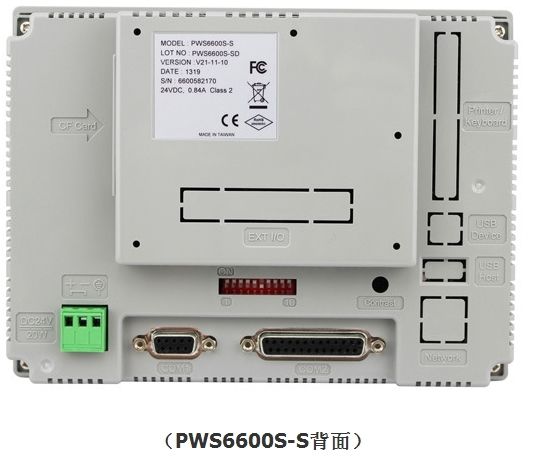

COM1	9-pin female connector: RS232/RS485
COM2	25-pin female connector: RS232/RS422/RS485
Multi-functional Port	—
Ethernet	—
Front Panel Seal	IP65
Ambient Temperature	0~50ºC
Storage Temperature	-10~60ºC
Ambient Humidity	10-90%RH(0~40° C),10-60%RH(41-50° C),non-condensing
Vibration Endurance	0.5mm displacement, 10-55Hz, 2 hours per X, Y, and Z-axis directions
Shock Endurance	10G, 11ms three times in each direction of X, Y, and Z axes
CE	EN61000-6-4,EN61000-6-2
External Dimensions (mm)	195(W) x 145(H) x 59.1(D)
Cut-out Dimensions (mm)	185.8 x 135.8
Weight	0.81 Kg
Cooling	Natural cooling
