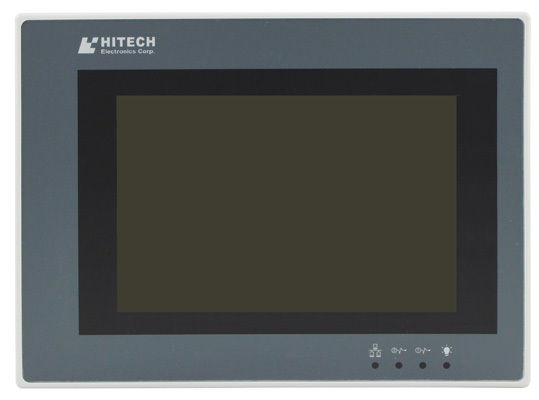

PWS5610T-S HITECH HMI Touch Screen 5.7inch 320*240 new in box
  • PWS5610T-S HITECH HMI Touch Screen 5.7inch 320*240 new in box
  • PWS5610T-S HITECH HMI Touch Screen 5.7inch 320*240 new in box
  • PWS5610T-S HITECH HMI Touch Screen 5.7inch 320*240 new in box

PWS5610T-S HITECH HMI Touch Screen 5.7inch 320*240 new in box

  • Model: PWS5610T-S
  • Shipping Weight: 1g
  • 28 Units in Stock

£127.68
Sale: £117.47
Save: 8% off


Add to Cart:




1,package included:

 PWS5610T-S human machine interface HMI touch screennew in box;

programming cable(Only offer it free when you askfor after order. Not ship it default. The communication cable is not included,if you need, please contact us and inquiry it)

The software is free(we can send it by email if youcan’t download it by yourself)

2, Performance specification

Item

PWS5610T-S

Display Type

Color TFT  LCD

Display Color

256 colors

Display Size

5.7” (diagonal); display area is 115.2 X 86.4 mm

Number of Pixels

320x240; Number of 8x8 characters displayable is 40x30.

Display Adjustment

Via touch panel

Back Light

LED; Lifetime 40,000 hours @25 degree

Touch Screen

Analog

Input Power

24VDC±15% ; Under 8W

Flash ROM

2M bytes

RAM

512 K bytes

CPU

32 bits RISC

Battery Backed Memory

256 K byte

RTC 1

Yes

COM1

9-pin female: RS232/RS422/RS485 without RTS/CTS

Front Panel Seal

IP65

Ambient Temperature

0~50°C

Storage Temperature

-10~60°C

Ambient Humidity

10-90%RH(0~40° C),10-60%RH(41-50° C),non-condensing

Vibration Endurance

0.5mm displacement, 10-55Hz, 2 hours per X, Y, and Z-axis directions

Shock Endurance

10G, 11ms three times in each direction of X, Y, and Z axes

CE

EN61000-6-4,EN61000-6-2

External Dimensions (mm)

195.0(W) x 145.0(H) x 40.2(D)

Cut-out Dimensions (mm)

185.8 x 135.8

Weight

0.5 Kg

Cooling

Natural cooling


Processing Time
