Package included:

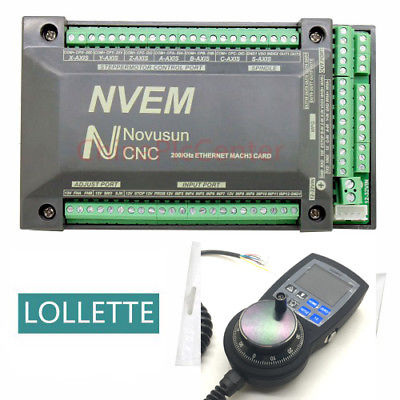

- 1* 6 Axis Ethernet MACH3 Motion Control Card
- 1* Network cable
Specification Feature:
1) High performance, low prices
2) 2.2' TFT Screen
3) 10 buttons
4) Voltage 5VDC
5) 8 wire control line
6) 6 axis coordinates /RESET/FRO/SRO/SJR/SPINDLE are display on the screen
Appearance & Dimension:
Product size is 150*75*35mm
Notice and Warning:
Prohibit staying in the rain, it will cause short-circuit.
Please use proper voltage power supply and motor.
Note the power supply connection. Prohibit reverse connection of power supply
Connection:
Connection interface definition
NVMPG has 8 wires connected to CNC system, the definition of NVMPG see as follow.
