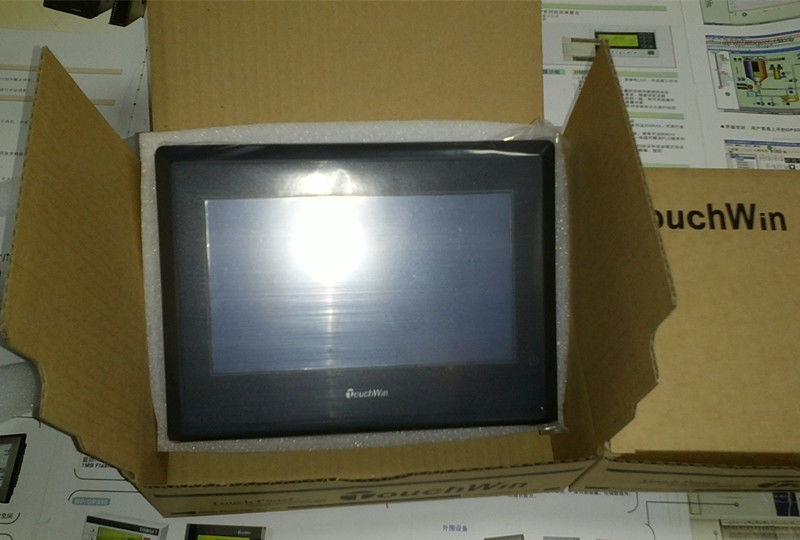

TG465-MT XINJE Touchwin HMI Touch Screen 4.3 inch with program cable new
  • TG465-MT XINJE Touchwin HMI Touch Screen 4.3 inch with program cable new
  • TG465-MT XINJE Touchwin HMI Touch Screen 4.3 inch with program cable new
  • TG465-MT XINJE Touchwin HMI Touch Screen 4.3 inch with program cable new

TG465-MT XINJE Touchwin HMI Touch Screen 4.3 inch with program cable new

  • Model: TG465-MT
  • Shipping Weight: 1g
  • 28 Units in Stock

£68.00


Add to Cart:



1,package included:

1pcs  TG465-MT  humanmachine interface HMI touch screen new in box;

1pcs programming cable(Only offer it free when you askfor after order. Not ship it default. The communication cable is not included,if you need, please contact us and inquiry it)

The software is free(we can send it by email if youcan’t download it by yourself)

2, Performance specification

Item

TG465-MT

Electrical

Input voltage

DC20-DC28V

Consumption current

140mA

Momentary power off allowance

Less than 10ms

Withstand voltage

AC1000V-10mA 1 minute ( signal and time )

Insulated impedance

DC500V- about 10Mohm ( signal and time )

Interface



-

USB1

No

USB2

USB-B ( accord with USB2.0 )

COM1

Support RS232, RS485

Environment

Environment temperature

20-85% ( no condensation )

Operation temperature

0-50centigrade degree

Reserve temperature

-20-60centigrade degree

Withstand oscillation

10-25Hz ( X, Y, Z each direction 30 minutes 2G )

Anti-jamming

Voltage noise: 1000Vp-p, pulse 1us, 1 minute

Surrounding air

No corrosive gas

Protection construction

IP65

Screen specification

Use life

More than 50000 hours, 24 hours running when surrounding temperature is 25 centigrade degree

Type

160000 true colors

Screen size

4.3 inch

Resolution

480*272

Contrast

Non-adjustable

Character

Chinese, English, Korean, Japanese…

Character size

Any size and font

Touch panel

4-wire resistance mode

Memory

Screen

64MB

Construction

Mounting dimension

144.0*94.0mm

Exterior dimension

152.0*102.0*41.8mm

Cooling method

Natural air cooling

Processing Time
  • Ships in 24 hours: Processing Time is guaranteed to be shorter than 24 hours.
  • Typical Processing Time: 1 - 3 days

We ship to over 200 countries worldwide!
