1,package included:
TK6070iQ human machine interface HMI touch screen newin box;
programming cable(Only offer it free when you askfor after order. Not ship it default. The communication cable is not included,if you need, please contact us and inquiry it)
The software is free(we can send it by email if youcan’t download it by yourself)

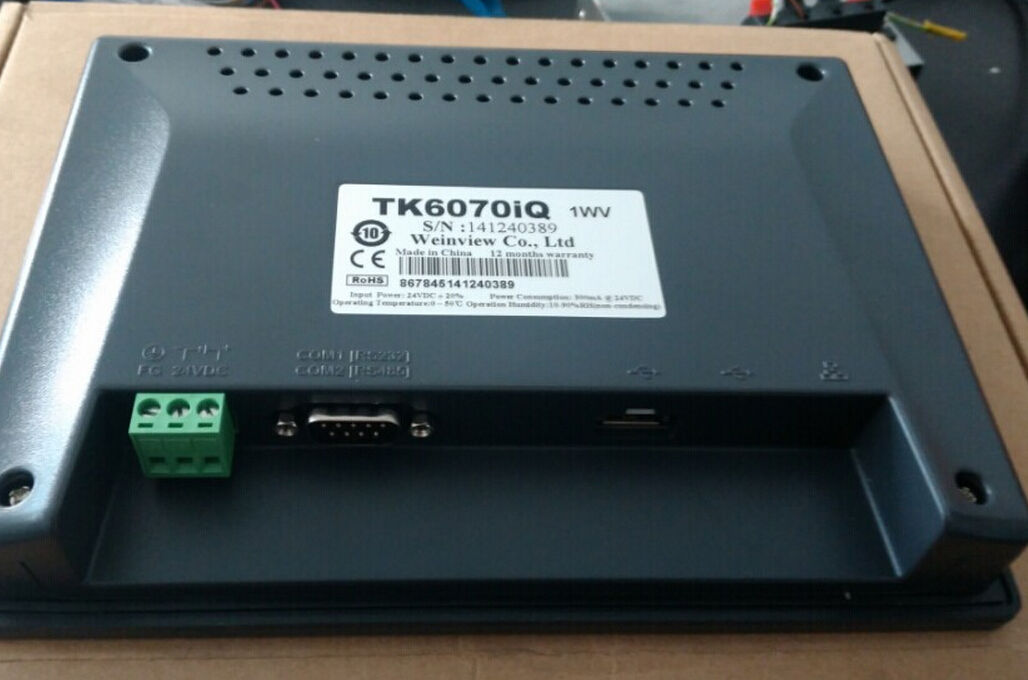

2, WeinviewTK6070iQ HMI
7"TFT LCD 800x480
Withoutfan cooling system
IP65panel protection level
LEDbacklight
Built-instorage memory and calendar
Com2 RS485support 187.5K MPI
3, Performance specification
| display | Display type | 7”TFT |
| resolution | 800 x 480 |
| lightness (cd/m2) | 350 |
| contrast | 500:1 |
| backlight | LED |
| Backlight life | 30,000 hours |
| color | 65536 |
| Touch panel | | Four-wire analog resistance type |
| memory | Flash (MB) | 128 |
| DRAM (MB) | 64 |
| processor | | 32Bit RISC 400MHz |
| communication | SD | N/A |
| USB Host | USB 1.0 x 1 |
| USB Client | N/A |
| Ethernet | N/A |
| COM | COM1 RS-232, COM2 RS-485 2W/4W |
| Calendar | | Built in |
| power | input | 24±20%VDC |
| power | 250mA 24V |
| Isolated power | N/A |
| Pressure-proof | 500VAC (1 munite) |
| Insulating resistance | 50MW at 500VDC |
| Quake-proof | 10 to 25Hz(X,Y,Z 2G 30munites) |
| Specifications | Sheathing material | ABS |
| Outside measurement | 200.4 x 146.5 x 34mm |
| Opening size(mm) | 192 x 138mm |
| Weight(kg) | 0.52 kg |
| Operating Environment | Protection level | NEMA4/IP65 |
| Storage Temperature | -20 to 60°C (-4°to 140°F) |
| Operating Temperature | 0°to 50°C(32°to 122°F) |
| Operating Humidity | 10% to 90% 40°C |
| CE Certification | CE | CE marked |
| Software | | EB8000 V465.06 or latest version |
Payment : we only accept Paypal for online shopping.
shipment:We use DHL,EMS as shipment method in normal.
Guarantee:1 year quality warranty.
