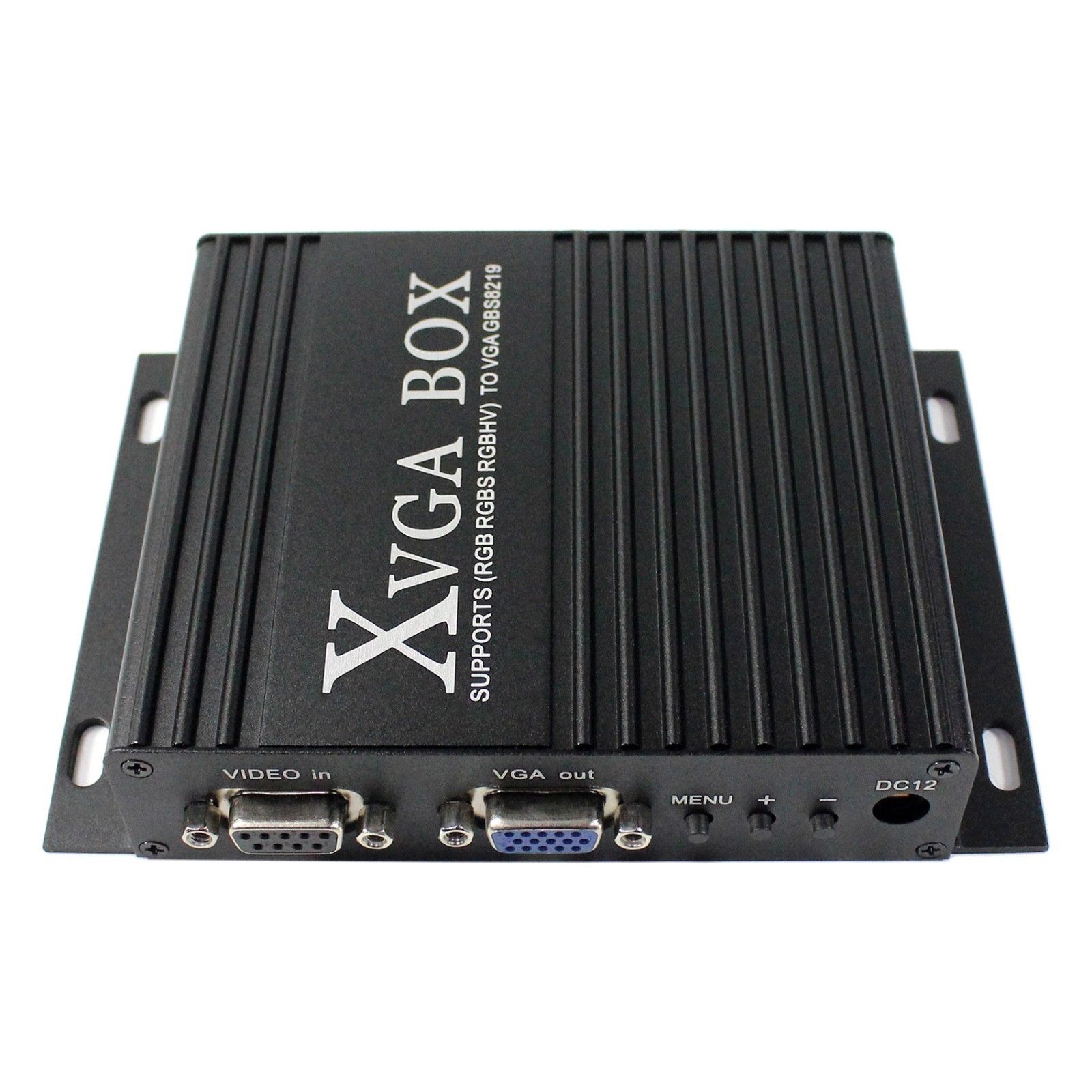

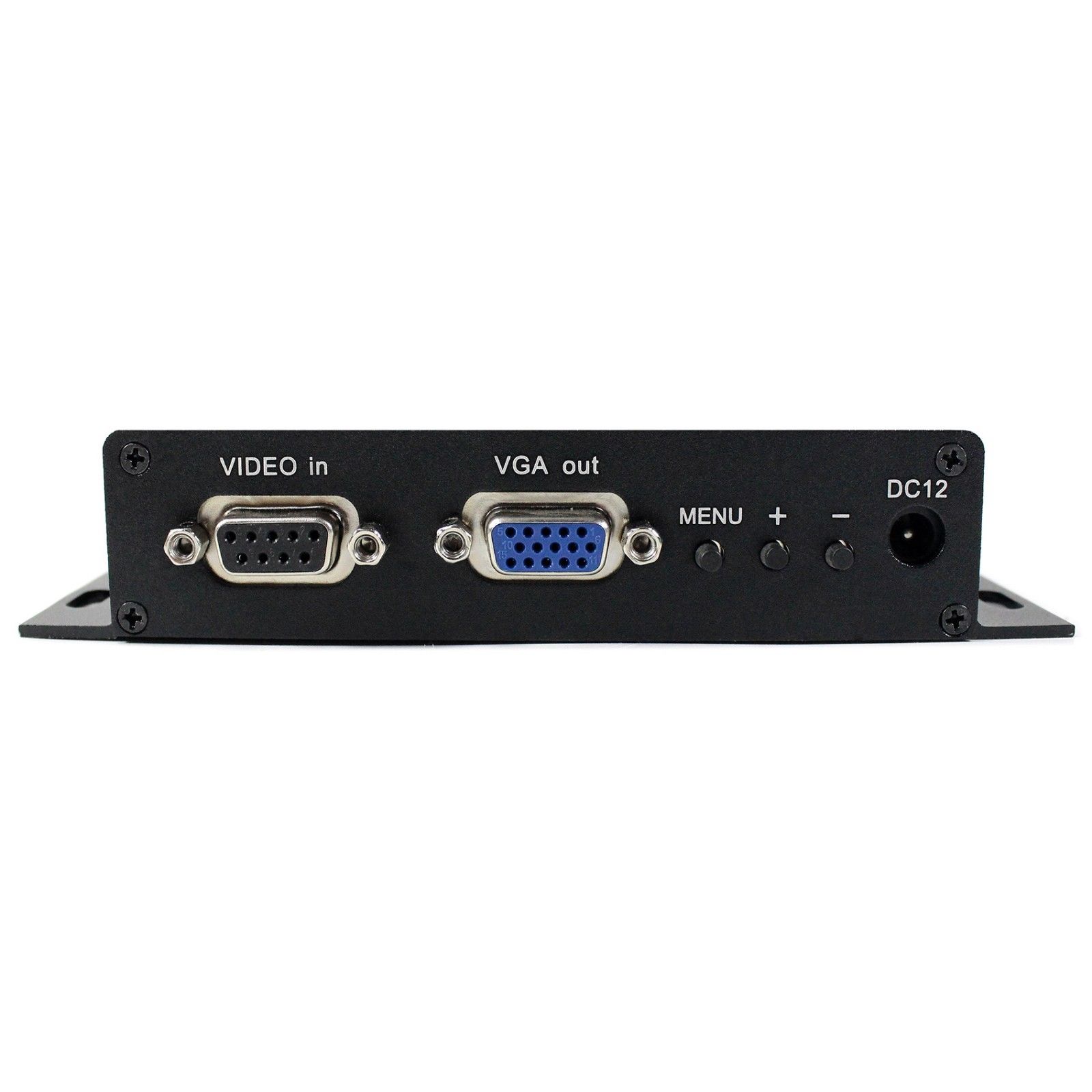

RGB CGA EGA YUV to VGA industrial monitor replacement Video Converter GBS8219

£158.00


It achieved Industrial video signal(RGB/CGA/VGA to VGA) conversion fully automated operation, will give you the maintenance

and replacement of industrial display to bring about affordable price and convenient.



Input

Signals

MDACGAEGARGBRGB SogRGBSRGBHVYPbPr



Interface

9pin3pin6pin14pin20pin25pin

Horizontal Frequency Rate(H)

12kHz to 40kHz

automatically recognized

Output

Supports

15pin VGAResolution:800*600/60HZ

or custom-resolution



Interface

D-Sub 15 PIN standard VGA port

Power

DC 12V 1.0A



Packing list :

1× Converter board GBS8219 for industrial monitor adapter

1× 12V 1A Power Supply

1× EGA Cable

1× Use manual


Add to Cart:

  • Model: GBS8219
  • 27 Units in Stock


Processing Time
  • Ships in 24 hours: Processing Time is guaranteed to be shorter than 24 hours.
  • Typical Processing Time: 1 - 3 days

We ship to over 200 countries worldwide!
