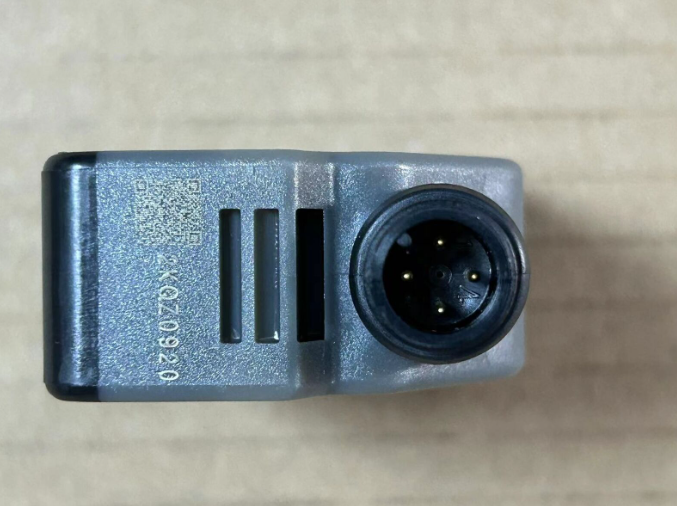

Panasonic EQ-34-PN-J reflective photoelectric sensor switch

CE Marking Directive Compliance EMC Directive, RoHS Directive

Adjustable Range 0.2 to 2 m 0.656 to 6.562 ft

(Note) The adjustable range stands for the maximum sensing range which can be set with the adjuster.

The sensor can detect an object 0.1 m 0.328 ft, or more, away.

Sensing Range (With White Non-Glossy Paper at Setting Distance 2 m 6.562 ft) 0.1 to 2 m 0.328 to 6.562 ft

Hysteresis 10 % or less of operation distance (With white non-glossy paper)

Repeatability Along sensing axis: 10 mm 0.394 in or less, Perpendicular to sensing axis: 1 mm 0.039 in or less (with white non-glossy paper)

Supply Voltage 10 to 30 V DC Ripple P-P 10 % or less

Current Consumption 55 mA or less

Output PNP open-collector transistor

- Maximum source current: 100 mA

- Applied voltage: 30 V DC or less (between output and + V)

- Residual voltage: 1 V or less (at 100 mA source current), 0.4 V or less (at 16 mA source current)

Output: Utilization Category DC-12 or DC-13

Output: Output Operation Switchable either Detection-ON or Detection-OFF

Output: Short-Circuit Protection Incorporated

Response Time 2 ms or less

Operation Indicator Red LED (lights up when the output is ON)

Stability Indicator Green LED (lights up under stable light received condition or stable dark condition)

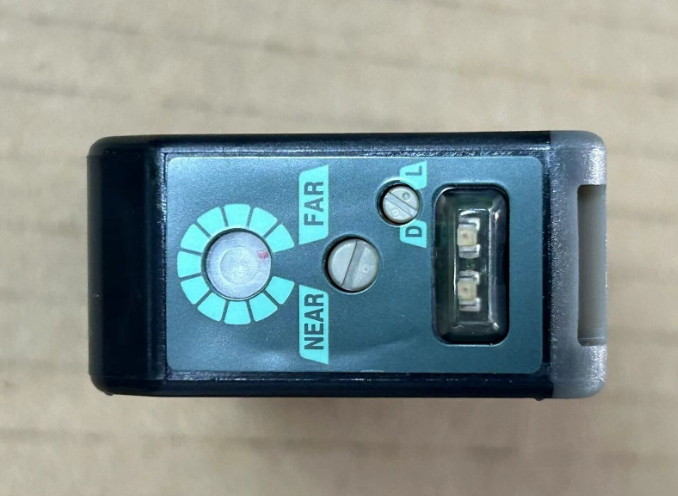

Distance Adjuster 2-turn mechanical adjuster with pointer

Automatic Interference Prevention Function Incorporated

(Note) Detection may become unstable depending on the setting conditions or the sensing objects. After setting up this product, make sure to check operations using actual sensing objects.

Pollution Degree 3 (Industrial environment)

Protection IP67 (IEC)

Ambient Temperature -20 to +55 ℃ -4 to +131 ℉ (No dew condensation or icing allowed), Storage: -25 to +70 ℃ -13 to +158 ℉

Ambient Humidity 35 to 85 % RH, Storage: 35 to 85 % RH

Ambient Illuminance Incandescent light: 3,000 ℓx or less at the light-receiving face

Voltage Withstandability 1,000 V AC for one min. between all supply terminals connected together and enclosure

Insulation Resistance 20 MOhm , or more, with 250 V megger between all supply terminals connected together and enclosure

Vibration Resistance 10 to 55 Hz frequency, 1.5 mm 0.059 in double amplitude (10 G max.) in X, Y and Z directions for two hours each

Shock Resistance 500 m/s2 acceleration (50 G approx.) in X, Y and Z directions three times each

Emitting Element Infrared LED (Peak emission wavelength: 880 nm 0.035 mil, modulated)

Material Enclosure: Polyalylate and Polyethylene terephthalate

Lens: Polyalylate

Cable 0.3 mm2 3-core cabtyre cable, 2 m 6.562 ft long

Cable Extension Extension up to total 100 m 328.084 ft is possible with 0.3 mm2, or more, cable.

Weight (Typ.) Net weight: 150 g approx

Gross weight: 200 g approx

Accessory Adjusting screwdriver: 1 pc.
