1,package included:

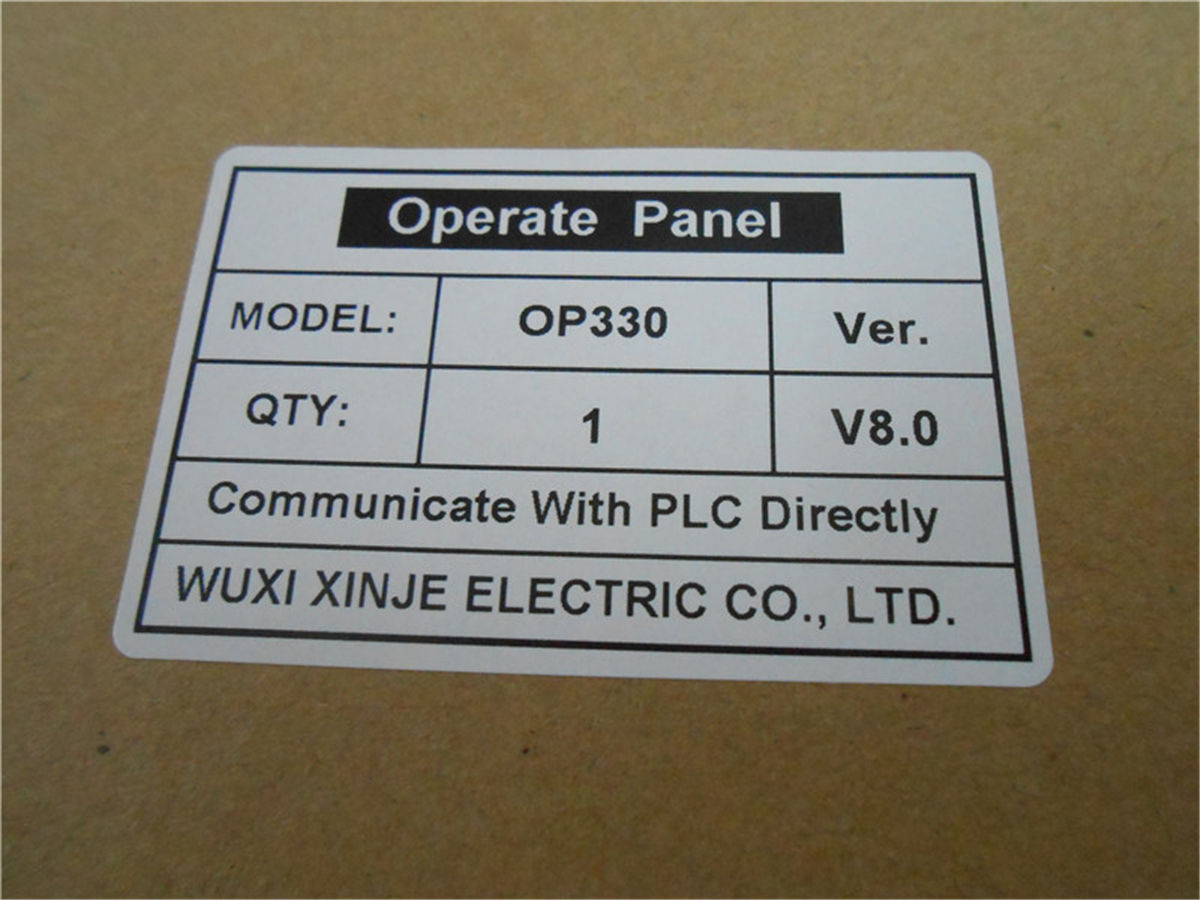

OP330 TouchWin Operate panel new in box;
downloading programming cable(Only offer it freewhen you ask for after order. Not ship it default. The communication cable isnot included, if you need, please contact us and inquiry it)
The software is free(we can send it by email if youcan’t download it by yourself)
2, OP330Operate Panel can communicate with PLC as:
XINJE XC, Mitsubishi FX1N/2N/1S, Omron C Series CPU,CP1W-CIF11 RS422, KOYO S, Delta DVP RS232, LG Master-K, Panasonic FP, FATEK FB,VIGOR VB, Emerson EC20, Idec PLC Micro3C, Keyence KV, SAIA-Burgess PCD.
3, Product description
3.7inches screen
26 keys
Supportingample PLCs
Withpassword protection feature, Built-in Clock (parts are optional)
Dynamicallydisplay text
Keys canbe defined as function keys, and also be replaceable as machine keys of thecontrol board.
BacklightSTN LCD display
4,General Specifications
Display | color | Yellow-Green STN |
Service life | Over20,000 hours, 25 degree centigrade of environment temperature, 24 hours operating |
Resolution | 192*64 |
Brightness | regulation resistance tunable |
Word enactment | Chinese simplified/complex, English(24charaters X 4 lines, meaning 12 Chinese words X 4 lines) |
Character size | Raster font and Vector font |
Keys | 26 |
Storage | display | 64KB FALSHROM |
Data | 1KB SRAM |
Ports | Download port | RS232 |
Communication port | OP330:RS232/RS422;OP330-S:RS232/RS485 |
