Features:
XBC/XEC: Terminal block type
*Supporting floating-point arithmetic
*Built-in Cnet, HSC, PID, Positioning, Pulse catch, Input filter, External Interrupt
*Expansion Cnet, Ethernet
*Download port: Serial, USB
XBC/XEC
*Economic type
- CPU processing speed: 240ns/step
- Max 38 I/O points
- Program capacity: 4Ksteps
*Standard type
- CPU processing speed: 94ns/step
- Max. 284 I/O points
- Program capacity: 15Ksteps/200KB(XBC/XEC)
*High performance type
- CPU processing speed: 83ns/step
- Max. 384 I/O points
- Program capacity: 15Ksteps/200KB(XBC/XEC)
Specifications:
Items | Specifications (“S” type) | Remark |
XBC-DN32H (/DC) | XBC-DR32H (/DC) | XBC-DN64H (/DC) | XBC-DR64H (/DC) | XBCDR32HL |
Program control method | Cyclic execution of stored program, Time-driven interrupt, Process-driven interrupt | |
I/O control method | Batch processing by simultaneous scan (Refresh method), Directed by program instruction |
Program language | Ladder Diagram, Instruction List |
Number of instructions | Basic | 28 |
Application | 687 |
Processing speed (Basic instruction) | 0.12 us/Step |
Program capacity | 15 k steps | 30kstep |
Max. I/O points | 352 point (Main + Expansion 10 stages) | 384 point (Main + Expansion 10 stages) | 352 point |
Data area | P | P0000 ~ P1023F (16,384 point) |
M | M0000 ~ M1023F (16,384 point) |
K | K0000 ~ K4095F (65,536 point) |
L | L0000 ~ L2047F (32,768 point) |
F | F0000 ~ F1023F (16,384 point) |
T | 100ms, 10ms, 1ms : T0000 ~ T1023 (1,024 point) (Adjustable by parameter setting) |
C | C0000 ~ C1023 (1,024) |
S | S00.00 ~ S127.99 |
D | D0000 ~ D10239 (10,240 word) | Word |
U | U00.00 ~ U0A.31 (Analog data refresh area: 352 word) |
Z | Z000~Z127 (128 Word) |
N | N0000~N5119 (5,120 Word) |
R | R0000~R10239 (10,240 word) |
Total program | 128 | |
Initial task | 1 (_INT) |
Cyclic task | Max. 8 |
I/O task | Max. 8 |
Internal device task | Max. 8 |
Operation mode | RUN, STOP, DEBUG |
Self-diagnosis function | Detects errors of scan time, memory, I/O and power supply |
Program port | RS-232C 1 channel, USB 1 channel (USB 1.1 supported) |
Back-up method | Latch area setting in basic parameter |
Internal consumption current | 260 mA | 660 mA | 330 mA | 1,040 mA | 660 mA |
Weight(g) | 500 | 600 | 800 | 900 | 600 |
| | | | | | | | | | | |
|
SHIPPING
| 1. Shipping to worldwide. If send by post air mail usually to Europe within 15 days after sent out. |
|
| 2. Orders processed within 24-48 hours of payment verification. |

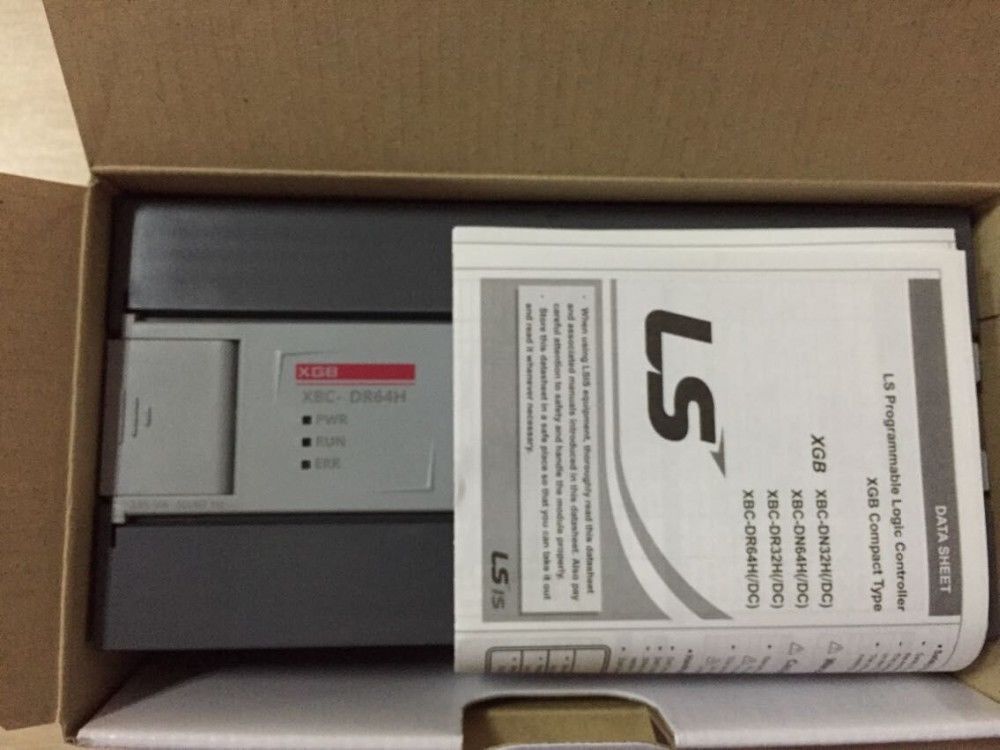

| 3. The images shown are the actual item and photographed by myself. |
