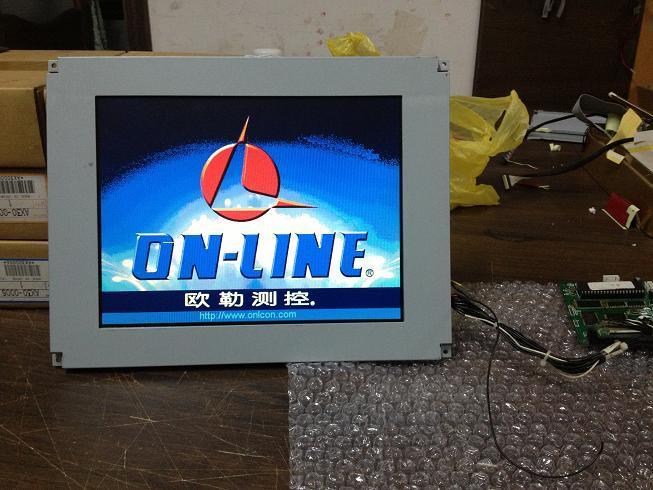

LQ10DH11 extensive use in the early industrial equipment in long have to repair period, but because the LCD screen 2000 annual has been discontinued, the market it is difficult to find, we in 2010 to develop alternative new LCD module LQ10DH11-K installation and interface with the prototype, exactly the same, LCD screen by now popular the latest TFT true color, backlight using the latest LED backlight, brightness, color, contrast, and the visual angle display effect is far better than the original effect.
1.Application Thisis the substitute goods that we copied SHARP LQ10DH11to produce in the year 2011, and now this goods have been widely used in allkind of machines.This product applies computer peripheral, industrial meter, and communication
2.Features . Compatible with VGA-480, VGA-400, VGA-350 and freeformat. . Pixel in stripe configuration .Slim and compact .Display Colors：1024 colors . Active area / Outline area= 62.3 % . Viewing Direction： 6 o’clock . Backlight :LED 3.Mechanical Specifications
|
Parameter
|
Specifications
|
Unit
|
|
ScreenSize
|
10.4 (diagonal)
|
inch
|
|
DisplayFormat
|
640×R,G, B×480
|
dot
|
|
ActiveArea
|
215(H)×162 (V)
|
mm
|
|
DotPitch
|
0.0675(H)×0.203(V)
|
mm
|
|
PixelPitch
|
0.203(H)×0.203(V)
|
mm
|
|
PixelConfiguration
|
Stripe
|
|
|
OutlineDimension
|
282(W)X217(H)X14(D)
|
mm
|
|
Weight
|
980
|
g
|
4.graphics

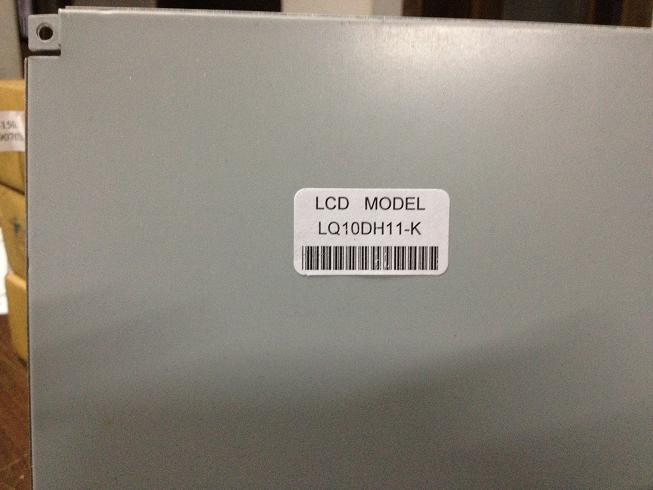

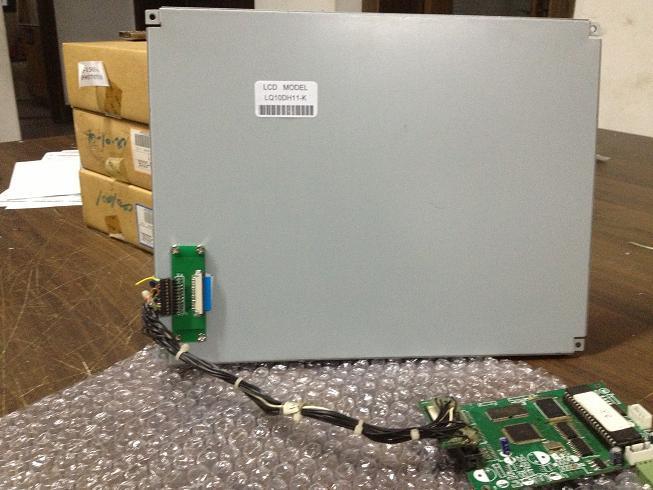

of TFT-LCD Module :LQ10DH11-K

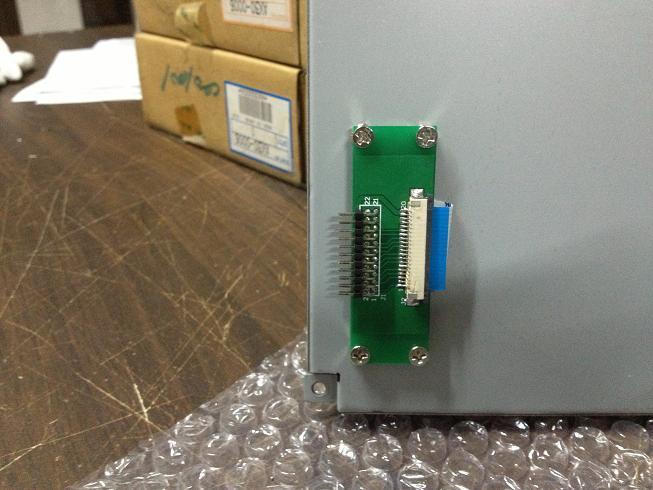

5.Input
/Output Terminals
5-1)
TFT-LCD Panel Driving
|
Pin No.
|
Symbol
|
Function
|
Remark
|
|
1
|
CLK
|
Ground (0V)
|
|
|
2
|
GND
|
Clock Signal forSampling
Image Digital Data
|
|
|
3
|
R0
|
Red Image Data
Signal
|
|
|
4
|
R1
|
Red Image Data
Signal
|
|
|
5
|
R2
|
Red Image Data
Signal (LSB)
|
|
|
6
|
GND
|
Ground (0V)
|
|
|
7
|
G0
|
Green Image Data
Signal
|
|
|
8
|
G1
|
Green Image Data
Signal
|
|
|
9
|
G2
|
Green Image Data
Signal (LSB)
|
|
|
10
|
GND
|
Ground (0V)
|
|
|
11
|
B0
|
Blue Image Data
Signal
|
|
|
12
|
B1
|
Blue Image Data
Signal
|
|
|
13
|
B2
|
Blue Image Data
Signal (LSB)
|
|
|
14
|
GND
|
Ground (0V)
|
|
|
15
|
HV
|
HorizontalSynchronous
Signal
|
|
|
16
|
GND
|
Ground (0V)
|
|
|
17
|
VS
|
VerticalSynchronous Signal
|
|
|
18
|
VCC
|
Green Image Data
Signal (MSB)
|
|
|
19
|
NC
|
Not connected
|
|
|
20
|
NC
|
Not connected
|
|
|
21
|
NC
|
Not connected
|
|
Note 5-1:
The TFT-LCD module is compatible withfour kinds of VGA timing. They are
VGA-480, VGA-400, VGA-350 and freedom mode.The polarization of Hsync and
Vsync determine the timings.
|
|
VGA-480
|
VGA-400
|
VGA-350
|
Freedom Mode
|
|
Hsync Polarization
|
Negative
|
Negative
|
Positive
|
Positive
|
|
Vsync Polarization
|
Negative
|
Positive
|
Negative
|
Positive
|
6.Absolute
Maximum Ratings:
GND=0V,Ta=25℃
|
Parameters
|
Symbol
|
MIN.
|
MAX.
|
Unit
|
Remark
|
|
+5V SupplyVoltage
|
VCC
|
0.0
|
+6.0
|
V
|
|
|
Input SignalsVoltage
|
Vsig
|
-0.3
|
VCC+0.3
|
V
|
Note 6-1
|
|
StorageTemperature
|
Tstg
|
-25
|
+70
|
℃
|
Note 6-2
|
|
OperatingTemperature
|
Topa
|
-0
|
+55
|
℃
|
|
Note 6-1:
Input signals include CLK,Hsync, Vsync, , R[0:2], G[0:2] and B[0:2].
Note 6-2:
Humidity : 95% RH Max. atTa ≦ 40℃.
Maximum
wet-bulb temperature is at 39 ℃ or less at Ta > 40 ℃.
No condensation.
7.
Electrical Characteristics
7-1)
Recommended Operating Conditions:
A) Driving
for TFT-LCD panel
GND= 0V，Ta
= 25 ℃
|
Parameters
|
Symbol
|
Min.
|
Typ.
|
Max.
|
Unit
|
Remark
|
|
+5V
|
Supply Voltage
|
VCC
|
+4.75
|
+5.0
|
+5.25
|
V
|
|
|
|
Supply InputRipple Voltage
|
VCCRP
|
|
|
0.1
|
Vp-p
|
VCC=+5V
|
|
Input SignalsVoltage
(High)
|
VIH
|
+2.6
|
|
|
V
|
|
|
Input SignalsVoltage (Low)
|
VIL
|
|
|
+0.5
|
V
|
|
B)
Driving for backlight
Ta= 25 ℃
|
Item
|
Symbol
|
Min.
|
Typ.
|
Max.
|
Unit
|
Remark
|
|
LED Life Time
|
|
-
|
60,000
|
-
|
Hr
|
|
7-2)Power
Consumption
|
Parameters
|
Symbol
|
Typ.
|
Max.
|
Unit
|
Remark
|
|
+5V
|
CurrentDissipation
|
ICC
|
500
|
600
|
mA
|
|
|
Input SignalsCurrent
(High)
|
IIH
|
|
100
|
μA
|
VIH =+5V
|
|
Input SignalsCurrent (Low)
|
IIL
|
|
100
|
μA
|
VIL =0V
|
|
LCD Panel PowerConsumption
|
|
2.5
|
|
W
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
7-3)Input / Output signal timing chart
|
Parameters
|
Symbol
|
Format
|
Min.
|
Typ.
|
Max.
|
Unit
|
Note
|
|
|
Frequency
|
| |
