CP243i Siemens S7-200 PLC dedicated Ethernet converter, easy to use, completely transparent to users, without the need to add any programs and drivers in the PC and the PLC, you can use immediately after installation.
It's Siemens S7-200 PPI protocol conversion for Siemens Profinet protocol (TCP / IP) enables Siemens S7-200 can achieve long-distance, high-speed (up to 187.5K) to communicate with a variety of PC software via Ethernet,
And can connect Step7-MicroWin Siemens S7-200 programming. It can achieve cross-regional data transmission over the Internet. It is with Siemens CP243-1 Ethernet communication processor similar functions, can replace Siemens PPI rs232 cable, USB-PPI, CP243-1.
1, do not need to add any programs and drivers, can be used immediately after installation.
Support XP, WIN7, WIN8 system.
2, the S7-200 the PPI protocol conversion for Siemens Profinet protocol (TCP / IP) enables Siemens S7-200 via Ethernet with a variety of PC software (such as configuration king, Wincc, force control, Intouch, etc.) to achieve far distance, high-speed (up to 187.5K) communications.
3, you can simultaneously connect Step7-MicroWin for S7-200 programming.
4, you can achieve cross-regional data transmission over the Internet.
5, the wireless connection, easy programming!
6, but can be connected to WIN CC, Kingview, etc.

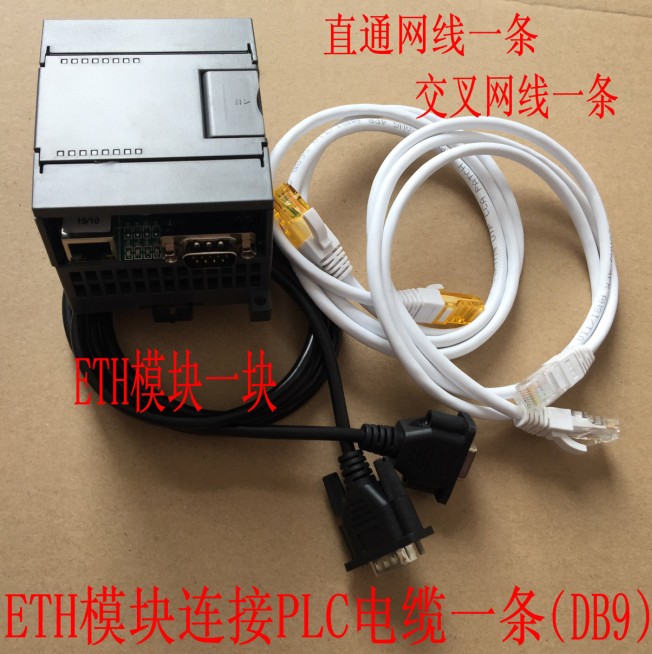

list:
Ethernet adapter*1
DB9 pin cable* 1
