EA-070B Samkoon HMI Touch Screen 7 inch 800*480 new in box

Model: EA-070B
Shipping Weight: 1g
28 Units in Stock

£59.00

Add to Cart:

1,package included:

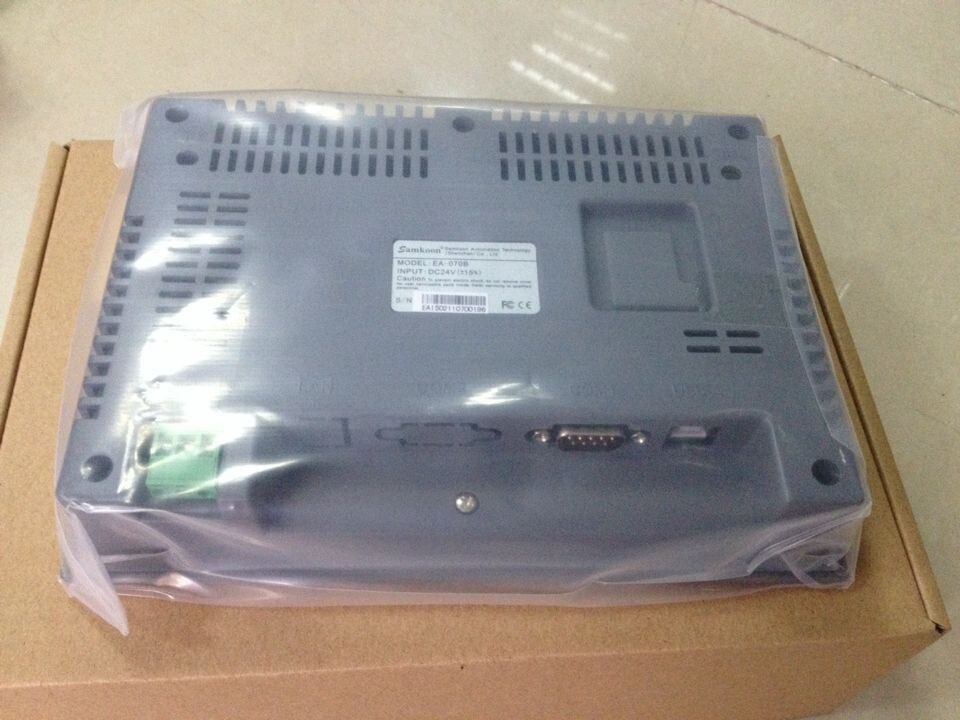

EA-070B humanmachine interface HMI touch screen new in box;

programming cable(Only offer it free when you askfor after order. Not ship it default. The communication cable is not included,if you need, please contact us and inquiry it)

The software is free(we can send it by email if youcan’t download it by yourself)

2, Performance specification

EA-070B Key Technical Parameters
Model	EA-070B
DisplaySize	7”(length: width=16:9)
Resolution	800x480
Brightness	450cd/m²
Contrast	450:1
color	262,144color
Backlight	LED
Controlpanel	4-wirehigh-precision electric resistance touch screen
COM	1xCOM(RS232,RS422,RS485)
USBdownload port USB Device	YES
USBport USB Host	None
Ethernetport	None
SDcard	None
Storage	128MFLASH+64M DDR2
CPU	ARM9400MHz
Supplypower	DC:24V(±15%),10W
Powerconsumption	6W
FCCcompatibility	FCC,Class A
Pressure-prooftest	1000VAC/per minute
CEcertification	EN55022EN55024
Operationtemperature	-10⁰~65⁰
Operationhumidity	10~90%RH(no condensation)
Shockproofdegree	10-25Hz(X Y Z dimension 2G/30 minutes)
ProtectionLevel	IP65(front panel)
Curstmaterial	Engineeringplastic ABS+ PC
Externalsize	203x145x41(mm)
Installedportiforium size	192x138(mm)
weight	About1.5kg
Configurationsoftware	SamDraw3.3
