DSP Controller, 0501. English version. Best prices for CNC router/ CNC Engraver, English version and English Manual
DSP Controller, 0501

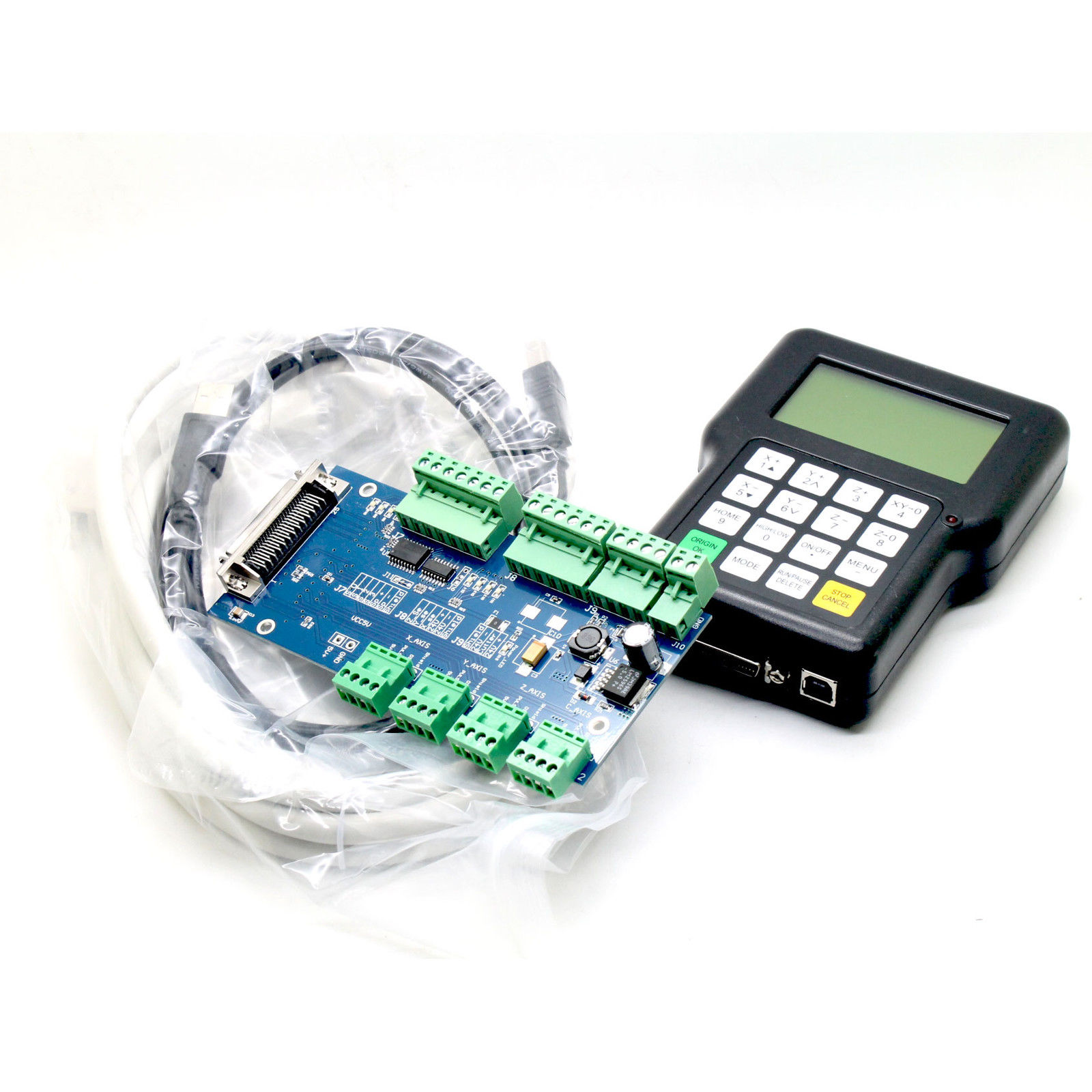

Package:
1. 1 Piece dsp 0501 panel

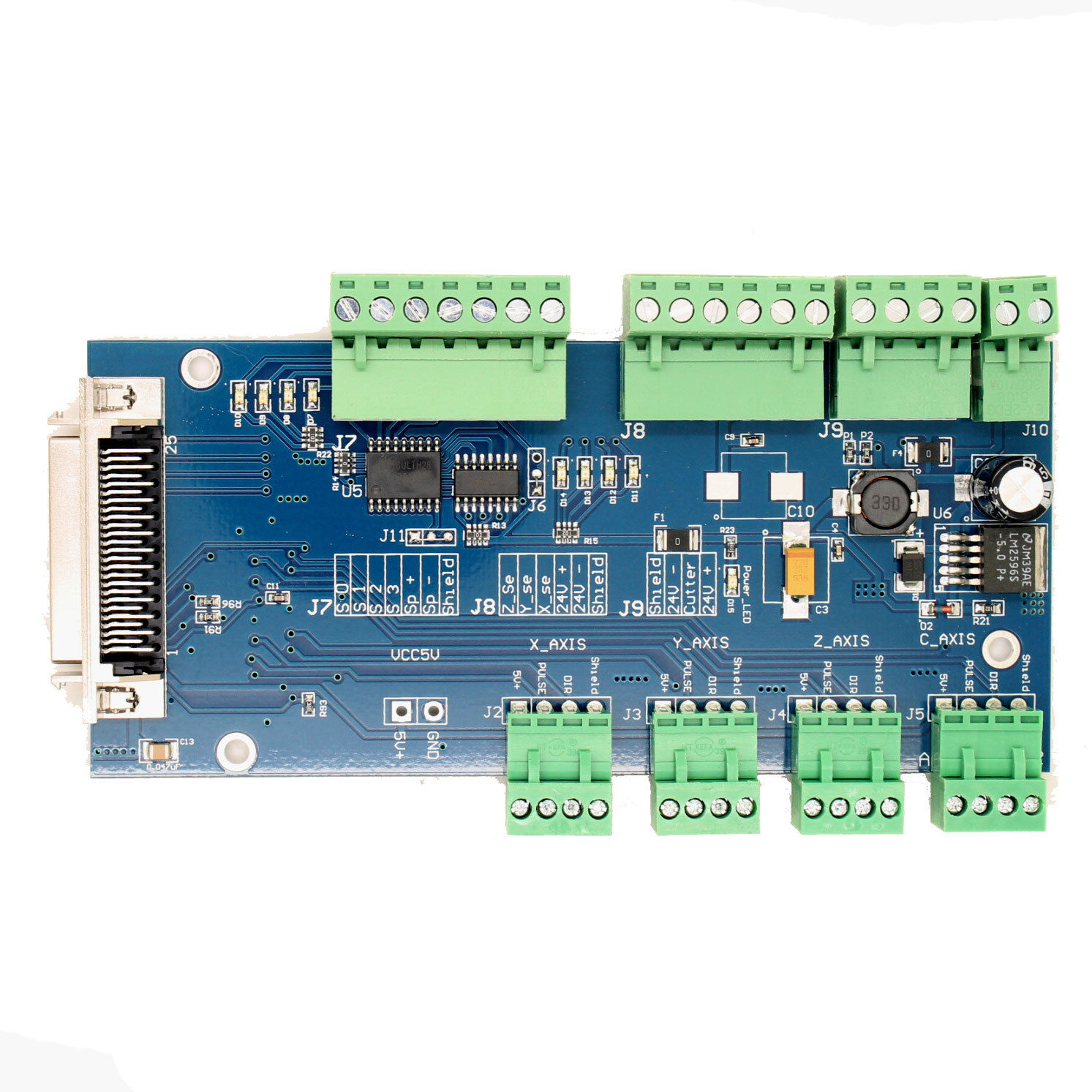

2. 1piece pcb connection board
3. 2pieces connection cable
4. Supply 1 piece USB Disk as gift for customer
(Contain manual etc. documents)
Description:
Contents | Specification |
Processor | 160M DSP |
File Memorizer | 128M memorizer inside, it supports file with any size because of adopting mobile memorize technology |
Display | LCD with 128 dot*64 dot |
Communication Terminals | USB terminal and U Disk |
File Format | G code , PLT files (optional) |
Axis | 3 |
Help Function | Useful help information and guide |
Languages | Chinese, English, (optional or customize) |
Operating Interface | Friendly Buttons and Menu Drive |
Drive System | Step Motors |
Interpolation function | linear, curve |
Cutter Adjusting function | Yes |
Spindle Control Function | Yes |
System Data Inspect Function | Yes |
Processing Data Inspect Function | Yes |
Processing Position Adjusting Function | Yes |
Multi Working Coordinates | It has 9 working coordinates |
Stop Point Reprocessing Function | Yes |
Copy Processing Function | Yes |
Data protection when power off | Yes |
Working Temperature | 0C to +70C |
Humidity | <90% no dew no frost |
Outer Voltage | 5 V |
Consumptions | 2 W |
Dimensions(mm) | 156*110*38 |
Characteristic:
1.Totally independent from PC platform;
2.Directly read files from U Disk;
3.Easily process G code or PLT file with super size;
4.Strong system and process file examining function;
5.Easy to update system program;
6.It supports high micro step which makes precise and fast process possible;
7.Support to process part of the file;
8.Reliable data protection and recover function;
9.Friendly operating interface
