2phase NEMA14 NEMA17 hybrid stepper motor driver DSP DC24V 2.5A MC425
  • 2phase NEMA14 NEMA17 hybrid stepper motor driver DSP DC24V 2.5A MC425
  • 2phase NEMA14 NEMA17 hybrid stepper motor driver DSP DC24V 2.5A MC425
  • 2phase NEMA14 NEMA17 hybrid stepper motor driver DSP DC24V 2.5A MC425

2phase NEMA14 NEMA17 hybrid stepper motor driver DSP DC24V 2.5A MC425

  • Model: MC425
  • Shipping Weight: 1g
  • 28 Units in Stock

£16.00


Add to Cart:

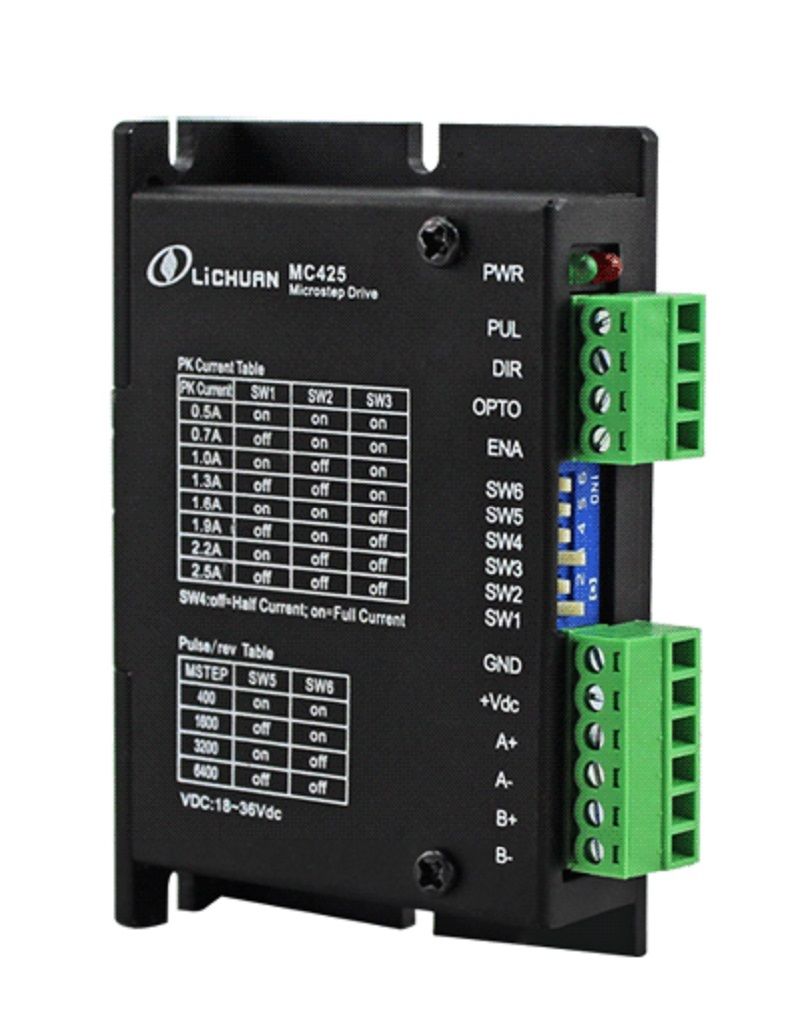

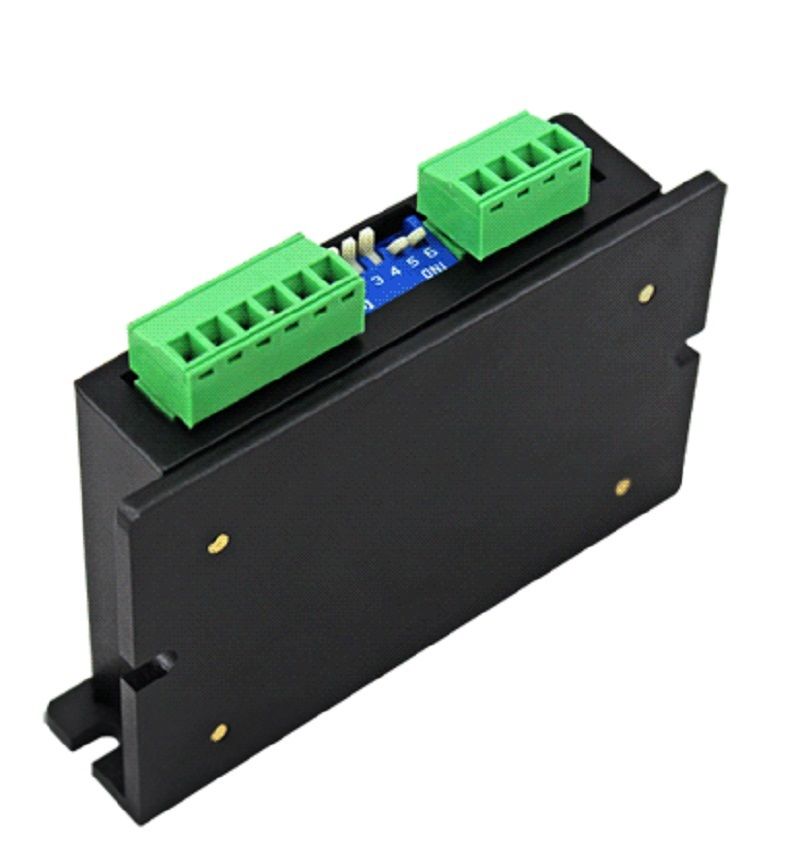

ProductName: two-phase 42 digital stepper driver MC425

MC425 digital low voltage stepper motordriver, using the latest 32 bit DSP technology, suitable for driving 35, 39, 42series motors, with excellent medium and low speed performance. It can set any subdivisionwithin 64 and any current value in rated current, which can meet therequirements of most small equipment. With the built-in micro technology, evenunder low subdivision conditions, it can achieve the effect of highsubdivision. The medium and low speed operation is very smooth, and the noiseis very small.

Can drive the 4 line, 8 line step motor;input voltage range: 18V~36VDC, maximum current 2.5A, 0.1A resolution,subdivision range: 400~6400ppr; signal input: single end, pulse / direction; built-inmicro precision; current control the heating of the motor is reduced; thestatic current automatically halved; photoelectric isolation signal input,strong anti-interference ability; with over-voltage, over-current protectionfunction, small volume.



Electric index

Instructions

MC425

min

rated

max

unit

peak current

0.5

-

2.2

A

Input voltage

18

24

36

VDC

Control signal input current

7

10

16

mA

Pulse frequency

0

-

75

KHZ

insulation resistance

500

-

-



Interface definition

(1) control signal interface

Name

function

PUL

Pulse input signal

DIR

The direction input signal is used to change the running directionof the motor. In order to ensure the reliable commutation of the motor, thedirection signal should be

Prior to the pulse signal, at least 5 s is established, theinitial running direction of the motor is related to the motor windingconnection, and exchanging any phase winding (such as A+, A- switching) canchange the direction of the initial operation of the motor

OPTO

Pulse / direction / enable signal power terminal +, defaultexternal 5V, if +12V or +24V, need extra resistance

ENA

Enable to control a signal that is used to enable or disable driveoutput. When the ENA is connected to a low level (or an internal optocoupler),the driver will cut off the current in each phase of the motor so that themotor is in a free state and does not respond to step pulses. When thisfunction is not required, the signal is left unconnected












(2) power interface

Name

function

GND

DC power earth

+Vdc

DC +,range:DC18V~36V. +24V Recommend

A+,A-

Motor A

B+,B+

Motor B



Application:

Suitable for all kinds of motion controlautomation equipment and instruments, such as electronic processing andtesting, semiconductor packaging, laser cutting and welding, laser printing,packaging machinery, engraving machine, marking machine, cutting machine,apparel plotter, CNC machine tools, automatic assembly equipment etc.. It isthe first choice for users with low noise, high speed performance andcompetitive cost performance.
