Z2-ATX-200 200W High Power 24pin mini-ITX DC ATX Direct Plug-In

Z2-ATX-200 200W High Power 24pin mini-ITX DC ATX Direct Plug-In

£29.00


Z2-ATX-200 packs an impressive amount of power relative with its very small footprint. Z2-ATX-200 has several key advantages over traditional power supplies:

- Very small , can build unltra-compact PC enclosures and slim server enclosures.
- Fits any motherboard equipped with a 24pin ATX connector.
- 100% silent, fanless, no moving parts.
- Operates at only 12V
- Highly efficient design, does not produce a lot of heat.
- Ideal for boards such as D945GCLF2, DG45FC, (Atom, Core 2 Duo) as well as all VIA C7/nano or AMD motherboards.

Small computer projects start with small power supplies. Z2-ATX-200 is a crucial key component that unleashes the ultimate power solution for general purpose computing platforms. Z2-ATX-200 is fully ATX compliant PSU, making it an excellent candidate for any silent, fanless and small 12V DC-DC ATX PC power supply project.

Reduce space. Eliminate 24 unnecessary wires by plugging in directly into the motherboard ATX connector. The Z2-ATX-200 12V dc-dc ATX converter was designed from ground up to fit small form factor ATX boards, allowing enclosure designers to save space while not compromising power requirements.

Cool power. Operating at only 12V, the Z2-ATX-200 dc-dc ATX power supply delivers 200 Watts of power. PSU provides plenty of power (via ATX connector and HDD cable harness) for CPU and an entire range of peripherals.

100% Silent The Z2-ATX-200 mini PSU is a 100% silent fanless DC-to-DC solution. No fans, no noise, just power for small and silent PCs.

Z2-ATX-200 is a fully compliant DC-DC ATX PC PSU. It can power VIA mini-ITX boards with C3 / C7 processors, P3, P4, Pentium-M, Core Duo versions and low power AMD processors.

Z2-ATX-200 ATX DC-DC converter is very small, measuring just 31x53x15mm, about the size of two AA batteries, Z2-ATX-200 is also 1U ServerRack compliant.


Z2-ATX-200W



Parallelled double TOSHIBA MOSFETs with 4mR RDSON (equivalent RDSON is 4mR/2=2mR) are adopted for the +12VDC rail to improve the output power. And MOFSETs with QFN package are used for +5VDC and +3.3VDC rails to improve the delivered power capability while reduce the heat.

IMG_0350

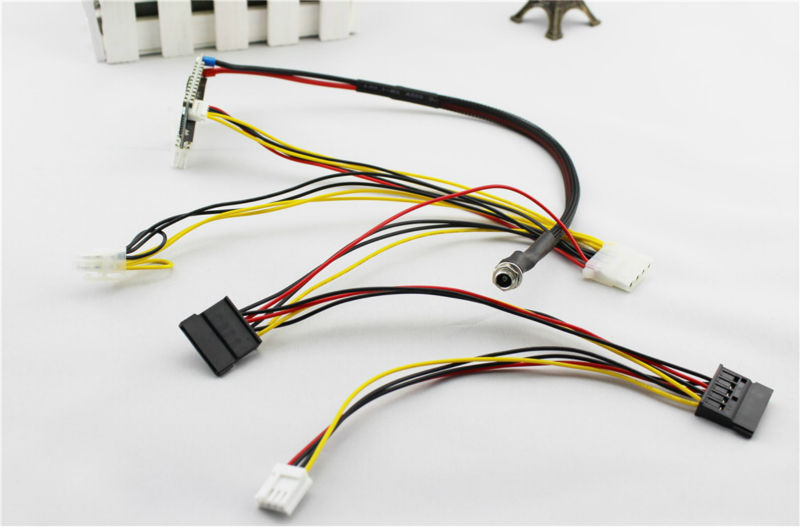

The connectors included in Z2-ATX-200 are shown in the following figure. Note that the DC input jack is female 5.5mm*2.5mm*10mm connector.

IMG_0361

Single board design with SIMENS automatic SMT assembly processes.

IMG_0359

AVX Tantalum capacitors and lots of MLCC capacitors are adopted to reduce the voltage ripple and extend the life.

IMG_0372
