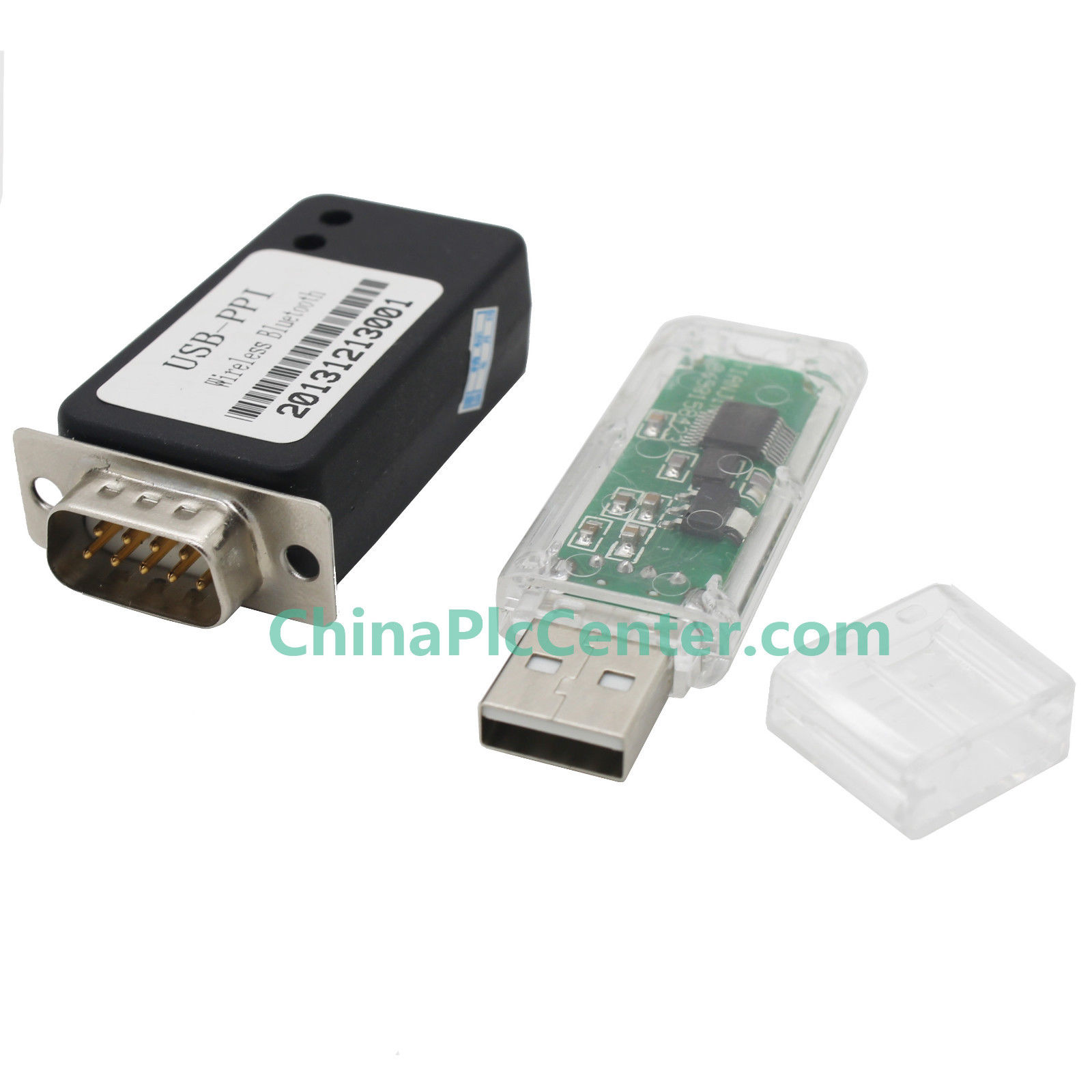

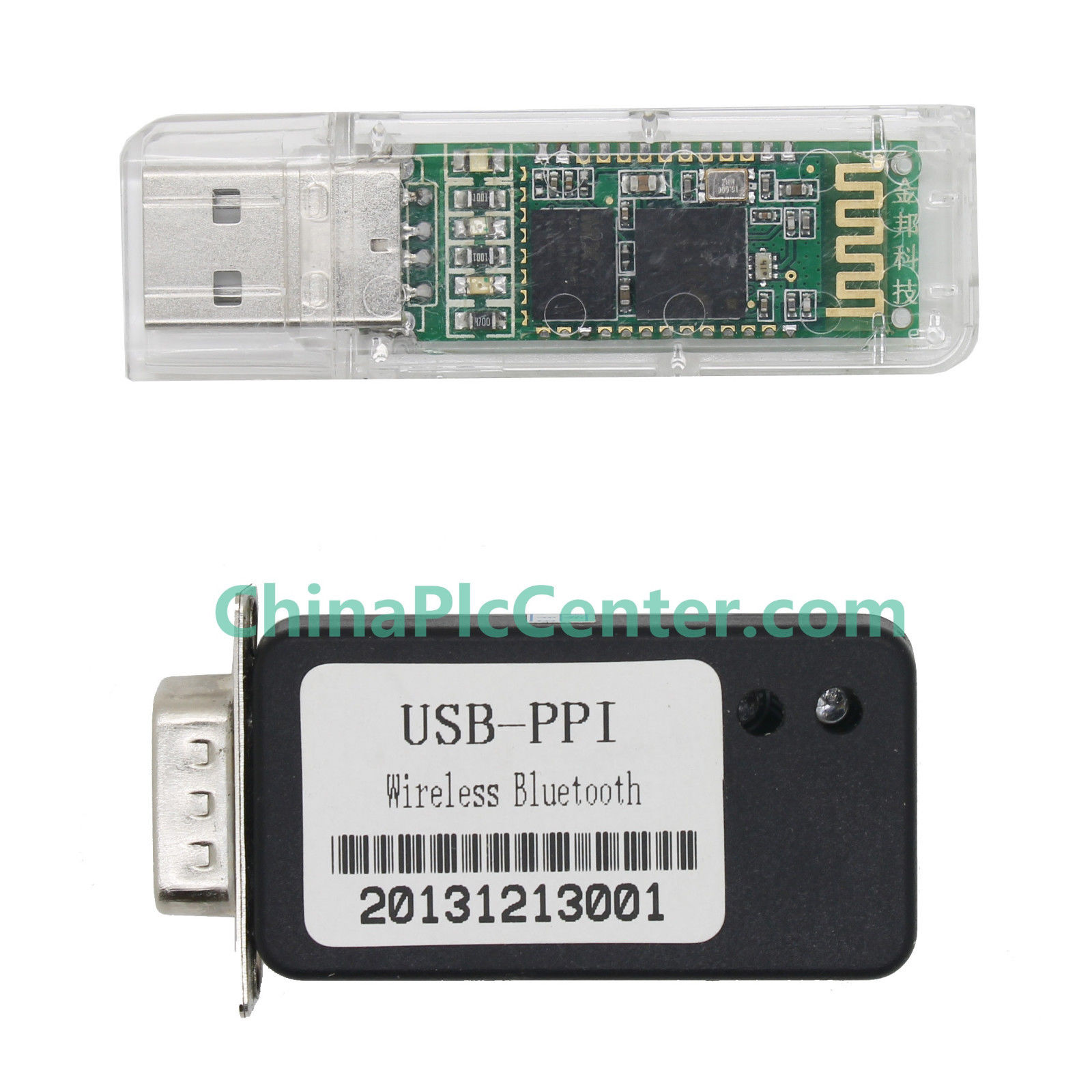

Wireless Bluetooth programming cable USB-PPI for Siemens s7-200 PLC distance 30m
  • Wireless Bluetooth programming cable USB-PPI for Siemens s7-200 PLC distance 30m
  • Wireless Bluetooth programming cable USB-PPI for Siemens s7-200 PLC distance 30m
  • Wireless Bluetooth programming cable USB-PPI for Siemens s7-200 PLC distance 30m

Wireless Bluetooth programming cable USB-PPI for Siemens s7-200 PLC distance 30m

  • Model: USB-PPI for Siemens s7-200.jpg
  • 21 Units in Stock

£109.00


Add to Cart:




Wireless series PLC Cable, 2014 new updated!

Exclusive Sale! Replace your wired Serial / USB programming cable NOW!

Features:

  • Support S7-200, S7-200CNPLC
  • Support windowsXP, Win7, Win8, Vista
  • Baud rate9600,19200,38400 ,57600 ,11520 .Default 9600, Please tell us if you need other rates.
  • Hot plug and work, pure wireless isolation
  • Support program downloading, uploading, monitoring, modification ...
  • Use imported chips and electronic parts, better quality
  • small and portable

Specifications:

  • Use CSR chip from UK, Qualified bluetooth communication
  • Valid wireless transmission distance1 ~ 30 Mmeters
  • Full SMT chip production process, non- manual welding.
  • Transmitter directly powered from PPI port, no external power supply
  • Receiver power directly from USB port , no external power supply
  • Bright LED lights
  • Parameter settings same as PLC default factory settings
  • Working Current: pairing: 30 ~ 40mA, paired not communicating: 2 ~ 8Ma, communicating: 8mA
  • Automatic pairing, after power on the receiver automatically searches for a transmitter, without human intervention, paired end LED lit.
  • Completely replace wired serial cable and USB cable cable.
    Dimensions: Transmitter 53 × 26 (mm), Receiver 63 × 20 (mm)
  • Can be seamlessly connected to a laptop, desktop computer.
  • After paired, can use it as half-duplex serial port, without having to know any Bluetooth protocol. When bluetooth connection established, automatically switches to transparent communication, directly replace the original wired serial cable, without need to modify the program.
  • Parameters such as baud rate, name, password are saved when power-down, not lost (set by default, no need to change)
  • Other applications: can also connect a variety of serial printer, residential access control systems, single-chip communications, data acquisition and other wireless connections.
  • Because the transmitter and receiver are completely isolated without any electrical contact, so this product supports hot-swap (hot plug)!
