Product 2702/2863
1,package included:

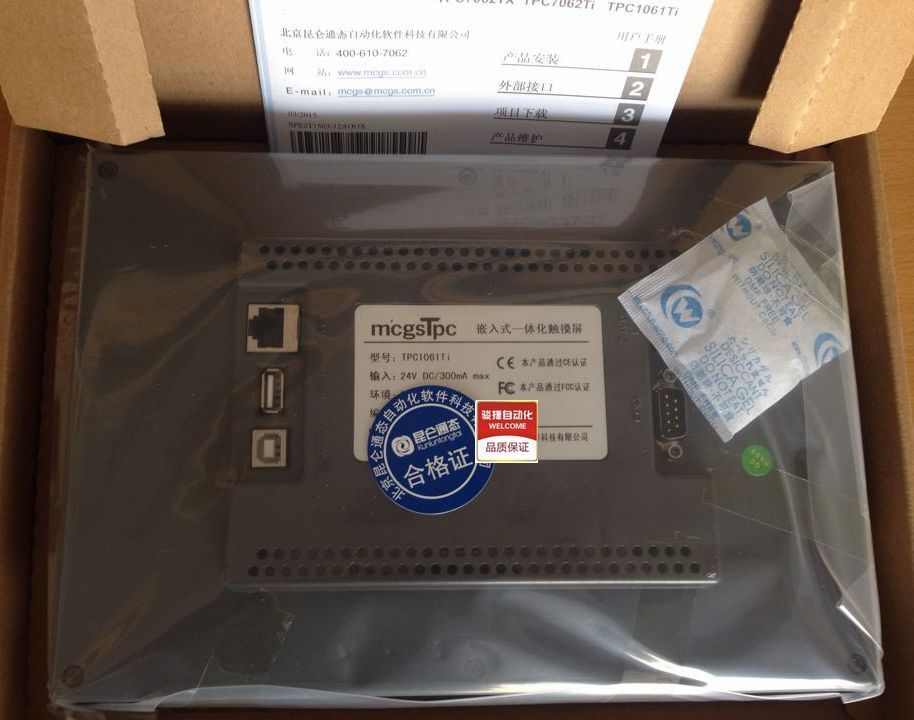

TPC1061Ti human machine interface HMI touch screen newin box;
programming cable(Only offer it free when you askfor after order. Not ship it default. The communication cable is not included,if you need, please contact us and inquiry it)
The software is free(we can send it by email if youcan’t download it by yourself)
2, Performance specification
Product Features
Dimensions ( in inches )
10.2 "
LCD
TFT LCD, LED backlight
Display Color
True color, 65535 colors
Resolution
1024x600
The brightness of the LCD screen
200cd / ㎡
Touch screen
Resistive
Power supply
24VDC
Rated Power
5W
CPUmotherboard
ARM CPU , 600MHz
Memory
128M
Storage devices
128M FLASH
Configuration software
The MCGS Embedded configuration software ( running version alarm formulation , data storage function, save the initial value )
Environmental conditions
Operating Temperature
0 ℃ to 45 ℃
Operating Humidity
5% to 90%
Storage Temperature
-10 ℃ to 60 ℃
Vibration frequency
10-57Hz 57-150Hz
Vibration acceleration
0.075mm 9.8 m / s 2
Vibration sweep rate
Oct / min ≤ 1
Specifications
Structure
The structure of industrial plastics
Color
Industrial gray
Panel Size
274mm × 193mm
Cabinet openings
261mm × 180mm
External interface
Serial ports
com1 RS232,com2 RS485
USB
1 host and 1 client
Ethernet
10/100M
Certified Protection
Authenticate
CE / FCC
Protection class
IP65
Payment : we only accept Paypal for online shopping.
shipment:We use DHL,EMS as shipment method in normal.
Guarantee:1 year quality warranty.
We ship to over 200 countries worldwide!
