Product 2679/2863
1,package included:

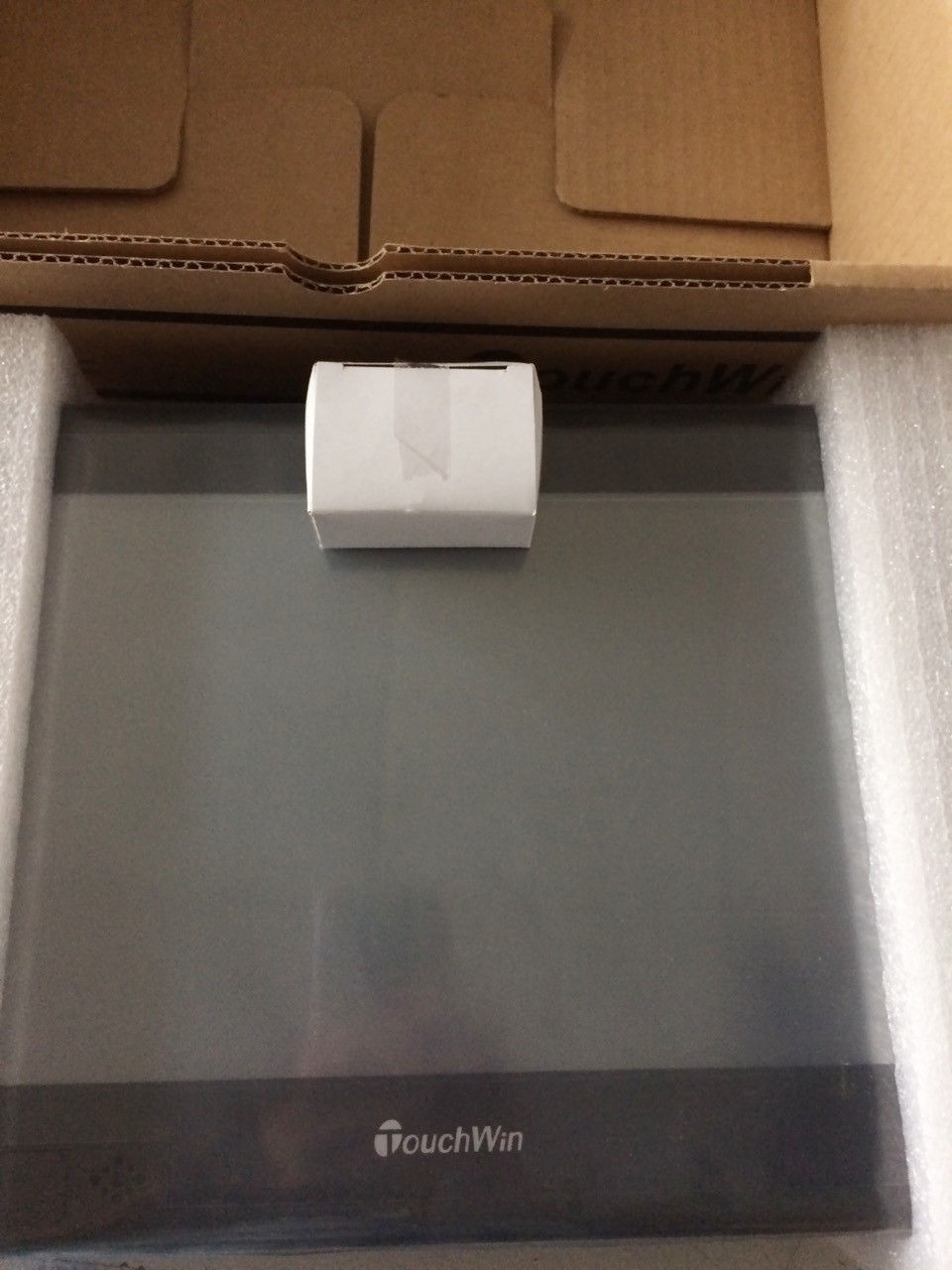

THA62-MT humanmachine interface HMI touch screen new in box;
programming cable(Only offer it free when you askfor after order. Not ship it default. The communication cable is not included,if you need, please contact us and inquiry it)
The software is free(we can send it by email if youcan’t download it by yourself)
2, Performance specification
Series
Model
LCD size
Resolution
(pixel)
Screen
PORT1
Download port
PORT2
PLC port
PORT3
EXT port
USB-A
port
Download way
THA62
THA62-MT
10.1″
800*480
128
MB
232/485
232/485/422
-
USB-B
THA62-UT
2
Item
Electrical
Input voltage
DC20-DC28V
Consumption current
630mA
Momentary power off allowance
Less than 10ms
Withstand voltage
AC1000V-10mA 1 minute ( signal and time )
Insulated impedance
DC500V- about 10Mohm ( signal and time )

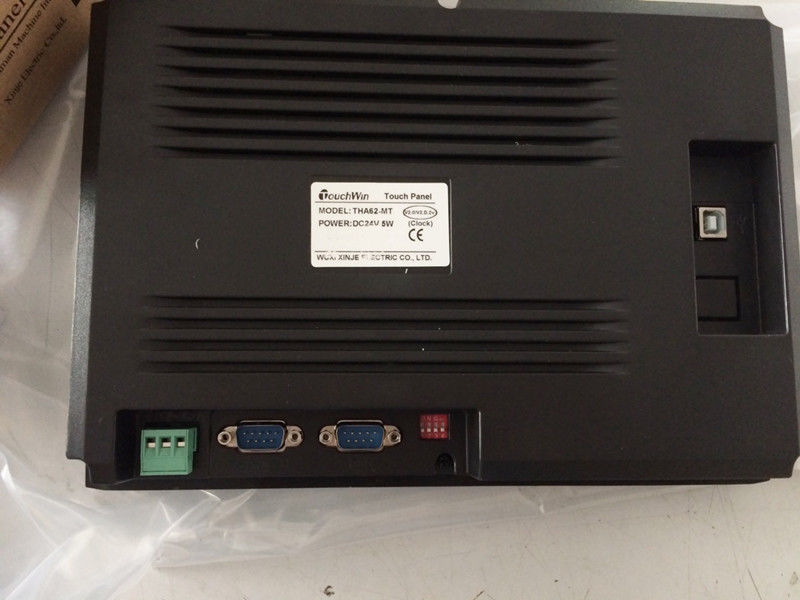

Interface
COM1
Support RS-232/RS-485
COM2
Support RS-232/RS422/RS485
USB1
N/A
USB2
USB-B ( accord with USB2.0 )
Environment
Operation temperature
0-50degree centigrade
Reserve temperature
-20-60degree centigrade
Environment temperature
20-85% ( no condensation )
Withstand oscillation
10-25Hz ( X, Y, Z each direction 30 minutes 2G )
Anti-jamming
Voltage noise: 1000Vp-p, pulse 1us, 1 minute
Surrounding air
No corrosive gas
Protection construction
IP65
Screen specification
Type
65536 true colors
Screen size
10.1 inch
Use life
More than 50000 hours, 24 hours running when surrounding temperature is 25 degree centigrade
Contrast
Non-adjustable
Character
Chinese, English, Korean, Japanese…
Character size
Any size and font
Touch panel
4-wire resistance mode
Memory
128MB
Construction
Cooling method
Natural air cooling
Exterior dimension
272.2*191.7*51.2mm
Mounting dimension
260.2*179.7mm
Payment : we only accept Paypal for online shopping.
shipment:We use DHL,EMS as shipment method in normal.
Guarantee:1 year quality warranty.
