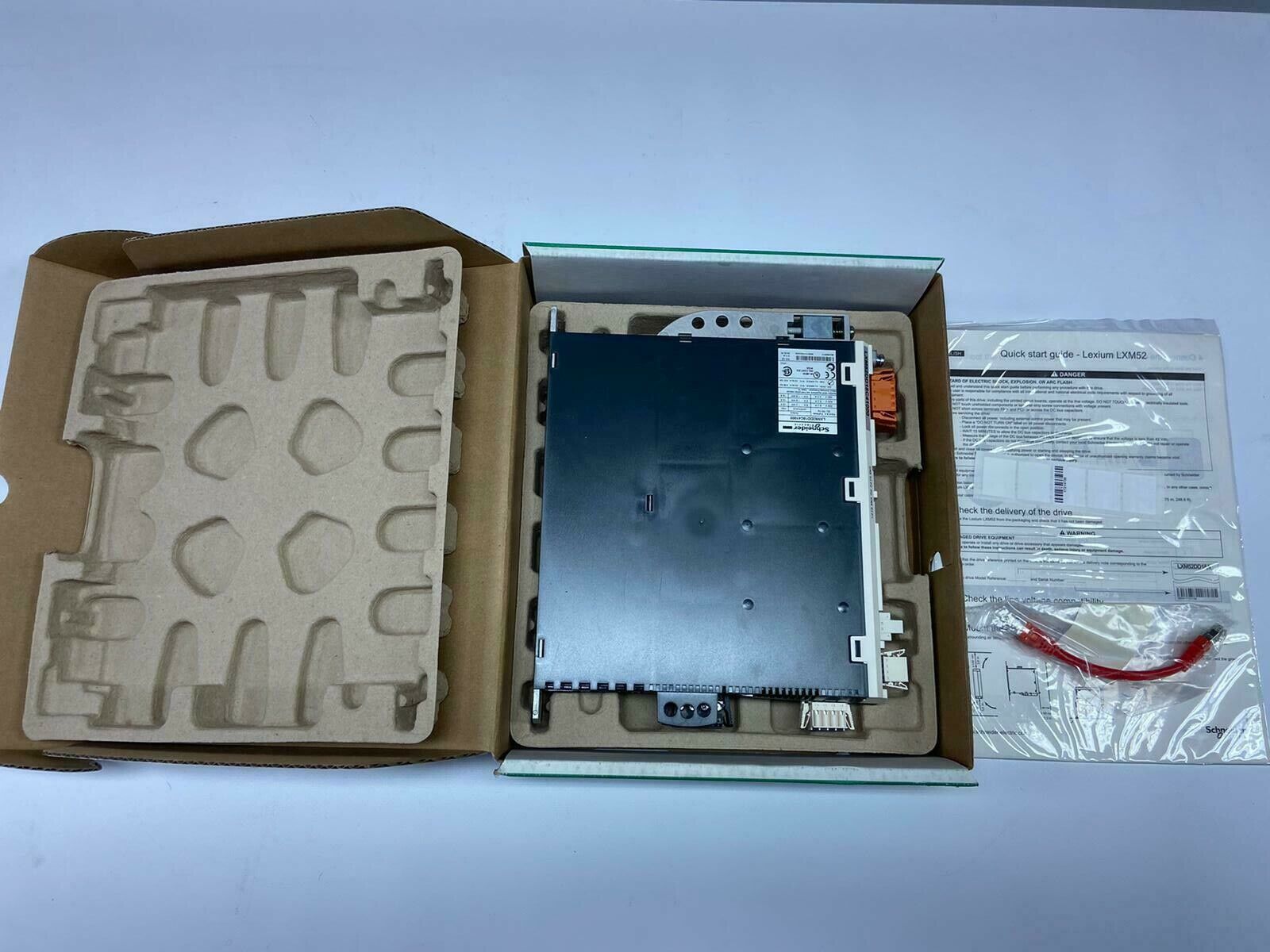

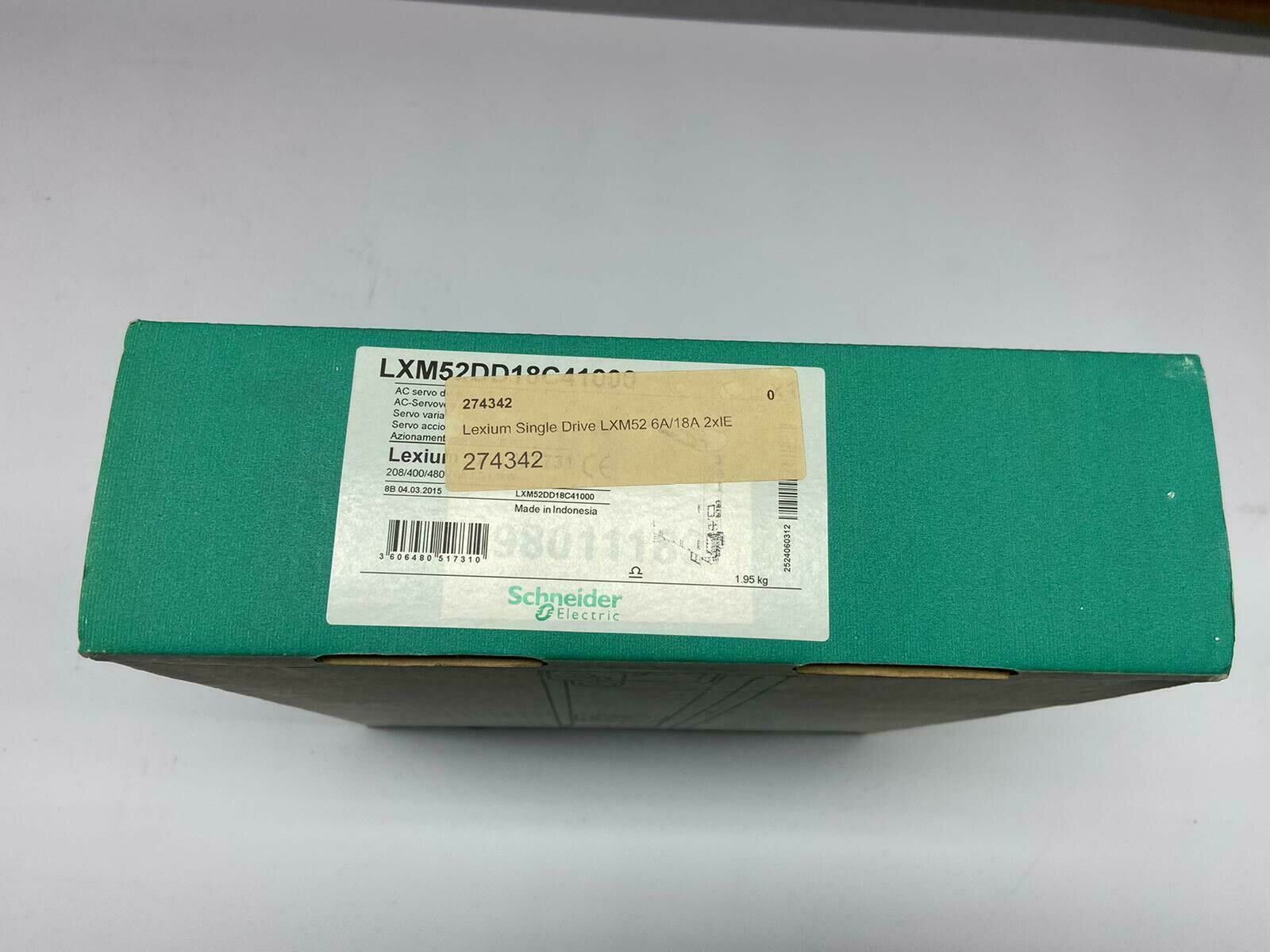

New SCHNEIDER ELECTRIC LXM52 single drive 6A/18A LXM52DD18C41000

£790.00
Sale: £655.70
Save: 17% off

Add to Cart:

New One year warranty

Range of Product	PacDrive 3
Product or Component Type	Single drive
device short name	LXM 52
product compatibility	Servo motor SHS Servo motor SH3 2.76 in (70 mm), 3 optimized in terms of torque and speed Servo motor SH3 3.94 in (100 mm), 1 optimized in terms of torque and speed Servo motor SH3 3.94 in (100 mm), 2 optimized in terms of torque and speed Servo motor SH3 3.94 in (100 mm), 3 optimized in terms of high torque Servo motor SH3 5.51 in (140 mm), 1 optimized in terms of high torque Servo motor MH3 3.94 in (100 mm), 2 optimized in terms of torque and speed

Complementary
Phase	3 phase
[Us] rated supply voltage	208...480 V
supply frequency	50...60 Hz - 5...5 %
continuous output current	6 A
output current 3s peak	18 A
continuous power	1.8 kW
overvoltage category	III
electrical connection	Terminal 0.75...5.3 mm², AWG 18...AWG 10 CN1)
tightening torque	CN1 6.02 lbf.in (0.68 N.m)
number of inputs	4 digital
discrete input voltage	24 V DC
number of outputs	2 digital
discrete output voltage	24 V DC
contact bounce time	> 1 ms compliment of STO_A, compliment of STO_B
physical interface	SERCOS III
net weight	4.19 lb(US) (1.9 kg)
