NEMA34 8Nm 1145ozin 2phase closed loop easy servo motor with hybrid driv

£142.88

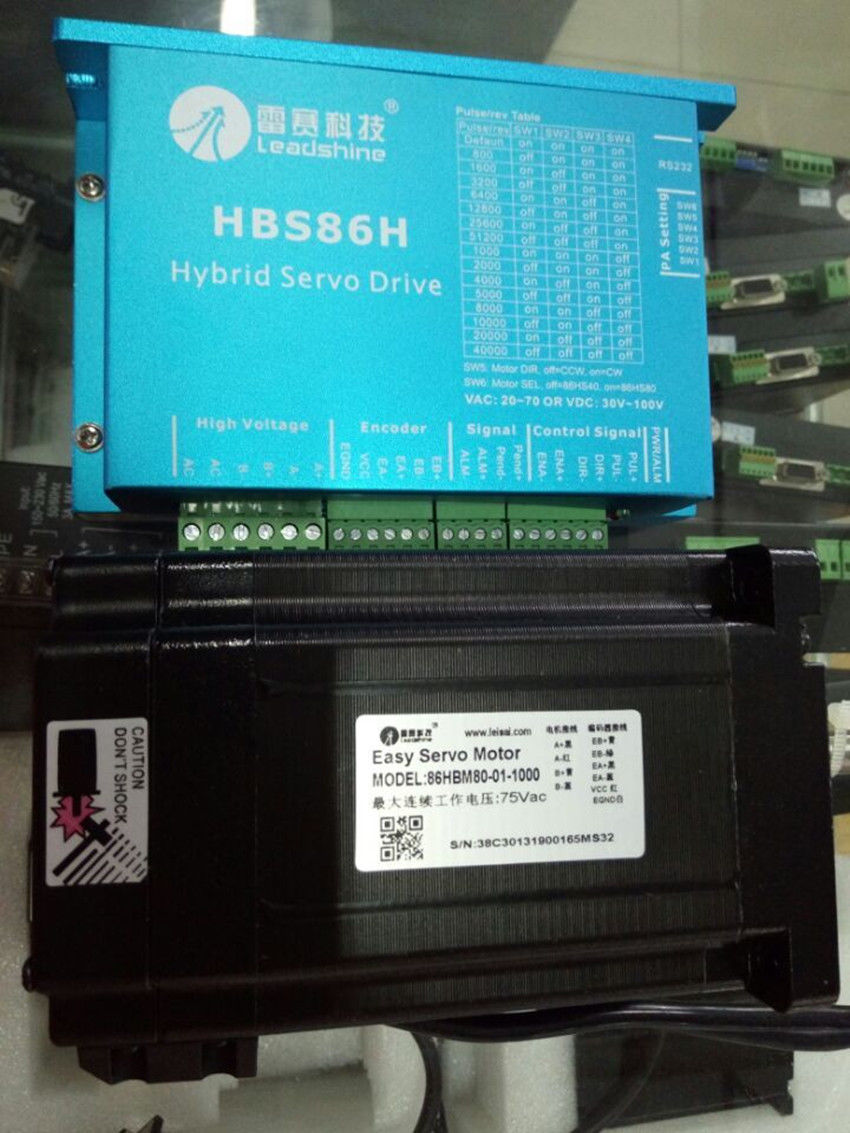

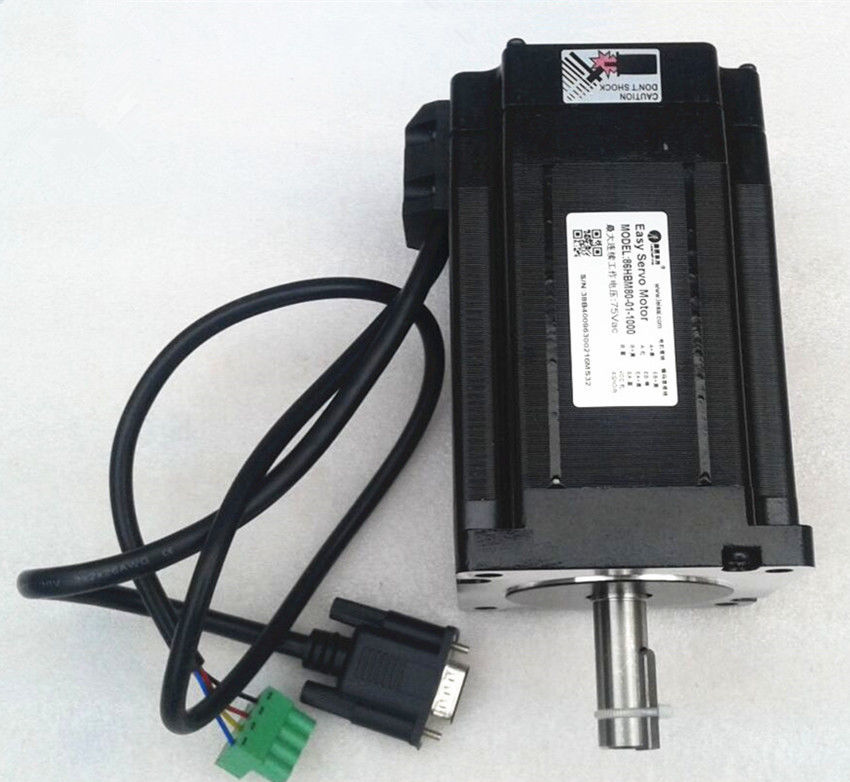

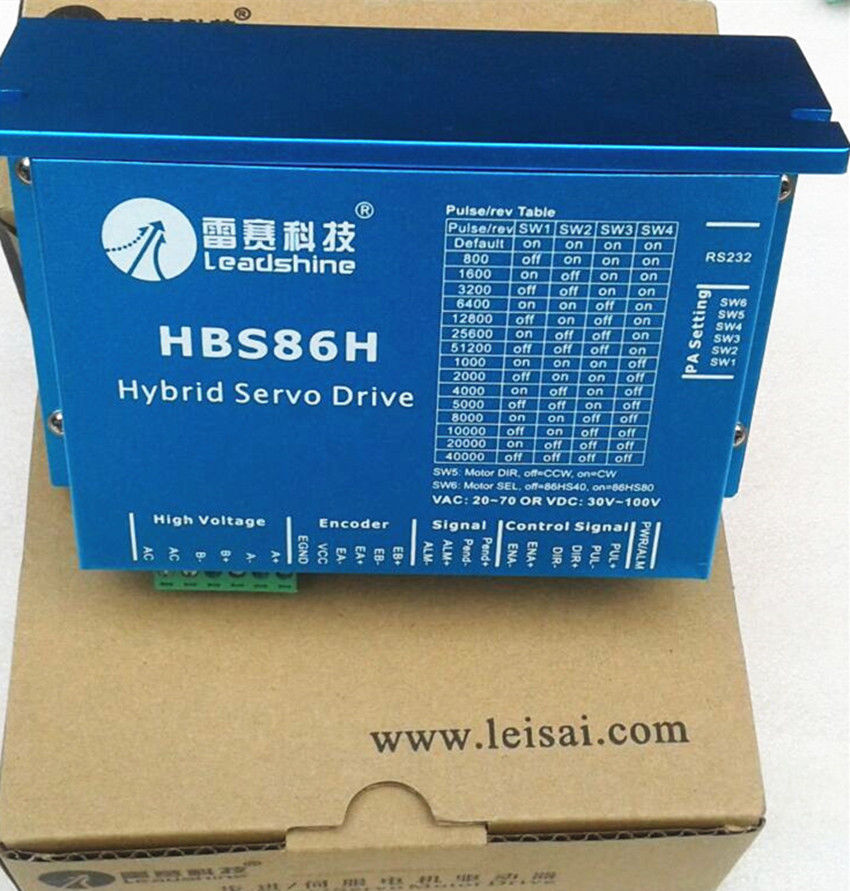

NEMA34 8Nm 1145ozin 2phase closed loop easy servo motor with hybrid drive kit HBS86H+86HBM80-01-1000 leadshine



Descriptions

The HBS seriesoffers an alternative for applications requiring high performance and highreliability when the servo was the only choice, while it remainscost-effective. The system includes a 2-phase stepper motor combined with afully digital, high performance drive and an internal encoder which is used toclose the position, velocity and current loops in real time, just like servosystems. It combines the best of servo and stepper motor technologies, anddelivers unique capabilities and enhancements over both, while at a fraction ofthe cost of a servo system.

Electrical Specifications

Parameter

Min

Typical

Max

Unit

Input Voltage

30

60

100

VDC

Output Current

0

-

8.0(Peak)

A

Pulse Input Frequency

0

-

200

kHz

Logic Signal Current

7

10

16

mA

Isolation Resistance

500

-

-

Applications

The HBS seriesoffers an alternative for applications requiring high performance and highreliability when the servo was the only choice, while it remainscost-effective. Its great feature of fast response and no hunting make it idealfor applications such as bonding and vision systems in which rapid motions witha short distance are required and hunting would be a problem. And it is idealfor applications where the equipment uses a belt-drive mechanism or otherwisehas low rigidity and you don't want it to vibrate when stopping.





Add to Cart:

  • Model: HBS86H+86HBM80-01-1000
  • Shipping Weight: 1g
  • 28 Units in Stock


Processing Time
  • Ships in 24 hours: Processing Time is guaranteed to be shorter than 24 hours.
  • Typical Processing Time: 1 - 3 days
