Product 1561/2863
1,package included:

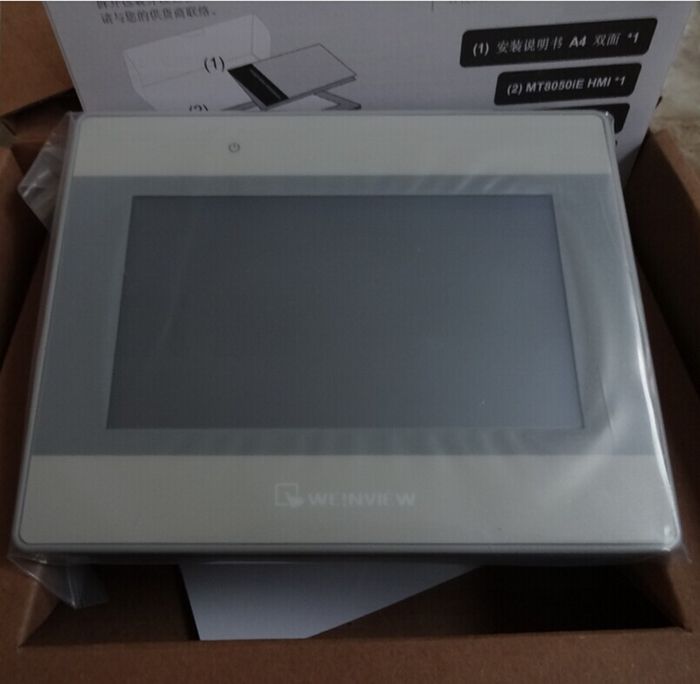

MT8050iE human machine interface HMI touch screen newin box;
programming cable(Only offer it free when you askfor after order. Not ship it default. The communication cable is not included,if you need, please contact us and inquiry it)
The software is free(we can send it by email if youcan’t download it by yourself)
2, WeinviewMT8050iE HMI
4.3"TFT LCD 480x272
Withoutfan cooling system
IP65panel protection level
LEDbacklight
Ethernet10/100 Base-T
Built inpower isolation protection device
Com1 RS485 support 187.5K MPI
3, Performance specification
display
Display type
4.3”TFT
resolution
480*272
lightness (cd/m2)
500
contrast
500:1
backlight
LED
Backlight life
30,000 hours
color
24bits
Touch panel
Four-wire analog resistance type
memory
Flash (MB)
128
DRAM (MB)
processor
32Bit RISC Cortex-A8 600MHz
communication
SD
N/A
USB Host
USB 2.0 x 1
USB Client
Ethernet
10/100 Base-T
COM
Com1:RS-232/RS-485 2w/4w,Com3:RS-485 2w
Calendar
Built in
power
input
24±20%VDC
250mA 24V
Isolated power
Pressure-proof
500VAC (1 munite)
Insulating resistance
50MW at 500VDC
Quake-proof
10 to 25Hz(X,Y,Z 2G 30munites)
Specifications
Sheathing material
ABS
Outside measurement
128 x 102 x 38mm
Opening size(mm)
119 x 93
Weight(kg)
0.25 kg
Operating Environment
Protection level
NEMA4/IP65
Storage Temperature
-20 to 60°C (-4°to 140°F)
Operating Temperature
0°to 50°C(32°to 122°F)
Operating Humidity
10% to 90% 40°C
CE Certification
CE
CE marked
Software
EasyBuild Pro
