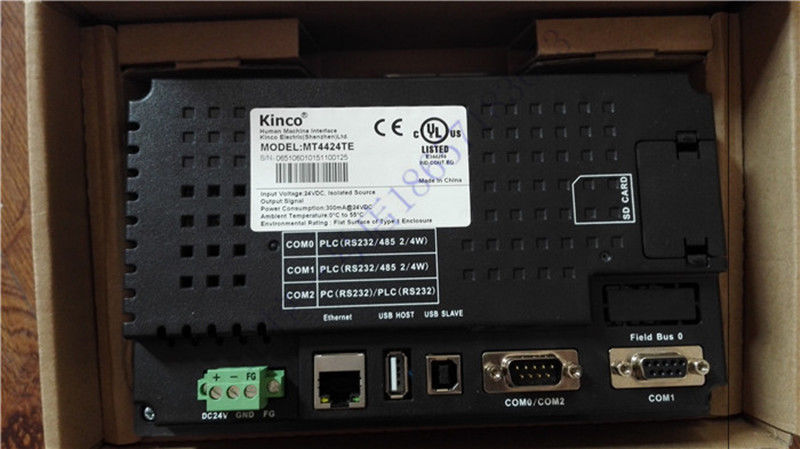

MT4424TE KINCO HMI Touch Screen 7inch 800*480 Ethernet + program cable n
  • MT4424TE KINCO HMI Touch Screen 7inch 800*480 Ethernet + program cable n
  • MT4424TE KINCO HMI Touch Screen 7inch 800*480 Ethernet + program cable n
  • MT4424TE KINCO HMI Touch Screen 7inch 800*480 Ethernet + program cable n

MT4424TE KINCO HMI Touch Screen 7inch 800*480 Ethernet + program cable n

£175.00


1,package included:

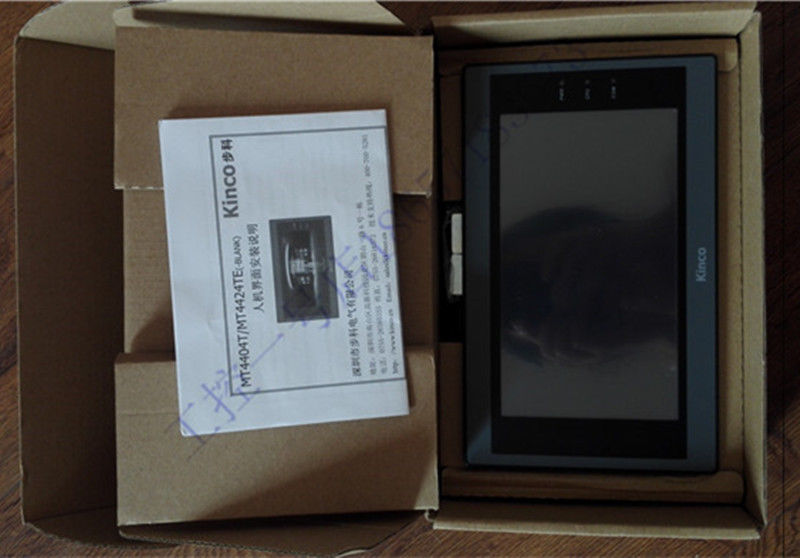

1pcs  MT4424TE  human machine interface HMI touch screen newin box;

1pcs programming cable(Only offer it free when you askfor after order. Not ship it default. The communication cable is not included,if you need, please contact us and inquiry it)

The software is free(we can send it by email if youcan’t download it by yourself)

2, KincoMT4424TE HMI

  • Display:7″16:9 TFT
  • Color:65536 Colors
  • Memory:128M FLASH + 64M SDRAM

3, Performance specification

Display

7" TFT

Resolution

800*480

Color

65536

Backlight

LED

Brightness

300cd/m2

Backlight life

50000 hours

Touch Panel

4-wire precision resistance network

Processor

32-bit 800MHz RISC

Memory

128M FLASH + 64M SDRAM

Expandable memory

1USB Host, 1 SD Card

Recipe memory & RTC

512KB + RTC

Printer port

USB Host/Slave/Serial port

Ethernet

Support

Program download

USB /Serial port/Ethernet port

COM port

COM0:PLC RS232/PLC RS485-2/4, COM1:PLC RS232/PLC RS485-2/4, COM2:PC/PLC RS232
