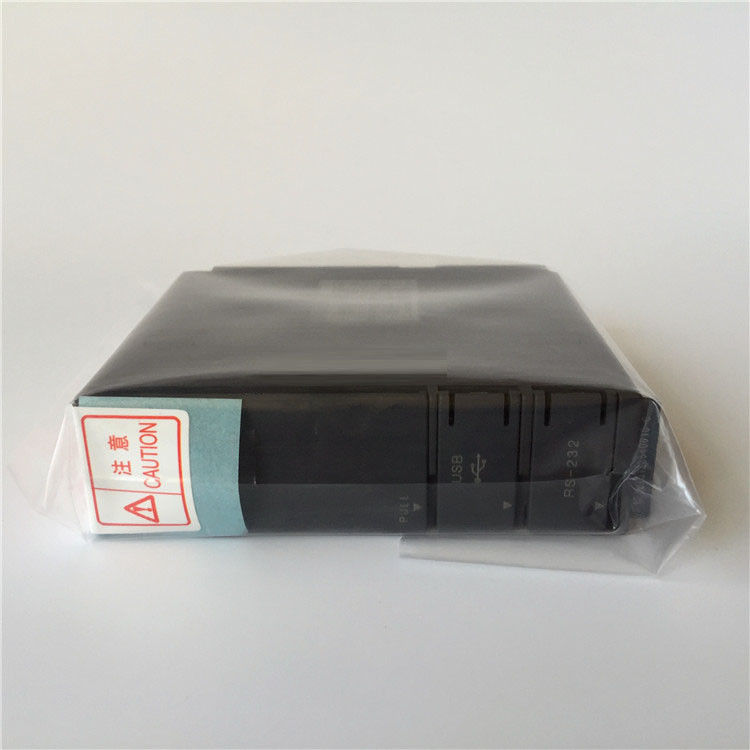

MITSUBISHI Programmable Logic Controller (PLC) CPU unit Q12PHCPU

MITSUBISHI CPU Q12PHCPU

Sub-range name MELSEC-Q QnU series

Functions Process Programmable Logic Controller (PLC) CPU unit

I/O control system -- Refresh system

Program execution type -- stored-program cyclic operation

Supply voltage (DC)5Vdc (from dedicated Q-series P.S.U.)

Programming languagesLadder diagram (LD) / Relay symbol language

Structured Text (ST)

Logic symbolic language

Function Block Diagram (FBD)

MELSAP3 (SFC)

MELSAP-L

Process control (FBD)

Memory capacity124Ksteps / 496KBytes (Program)

2048 points (Timers)

1024 points (Counters)

12288 points (Data registers)

8192 points (Internal relays)

8192 points (Latch relays)

8192 points (Link relays)

8192 points (Link register)

2048 points (Annunciator)

2048 points (Edge relays)

2048 points (Link special relays)

2048 points (Link special register)

131072 points (File registers)

8192 points (Step relays)

16 points (Index register Z)

4096 points (Pointer)

256 points (Interrupt pointer)

2048 points (Special relays)

16 points (Function input FX)

16 points (Function input FY)

5 points (Function register FD)

2048 points (Special register)

Connection capacity4096 x I/O points
