The new generation DVP-SV2 PLC is thehigh-end model of the Delta DVP-S series. It provides larger program capacitiesand data registers for more demanding and complex applications.
High-speed pulse output: 4 sets of 200kHz pulse output
Supports max. 4 hardware 200kHz high-speed counters
Increases many motion control instructions to meet the applications that require high-speed and high-precision positioning
Offers linear / arc interpolation motion control
Provides up to 16 external interrupt pointers
Complete Program Protection
Auto backup function to prevent losing programs and data even when the battery runs out
Second copy function provides a backup for extra insurance in the event that one set of programs and data are damaged
Up to 4-level password protection protects your source programs and intellectual property
Supports DVP-S series left-side and right-side modules
Add new ETHRW instruction for Ethernet communication
The 2nd generation DVP-SA2 series slim typePLC offers bigger program capacity and executing efficiency, offering 100 kHzhigh-speed output and counting functions. It is extendable with DVP-S seriesleft-side and right-side extension modules.
MPU points: 12 (8DI + 4DO)
Max. I/O points: 492 (12 + 480)
Program capacity: 16k steps
COM port: Built-in RS-232 & 2 RS-485 ports, compatible with Modbus ASCII/RTU protocol.
Can be master or slave.
High-Speed Pulse Output: Supports 2 points (Y0, Y2) of 100kHz and 2 points (Y1, Y3) of 10kHz independent high-speed pulse output.
Extendable to Max. 8 Modules: DVP-SA2 is extendable to analog I/O, temperature measurement, input DIP switch, PROFIBUS/DeviceNet communication modules and single-axis motion control functions.
Built-in High-Speed Counters
DVP12SA211R
Delta
SA2 Series Advanced PLC
24VDC
DI 8
DO 4 Relay

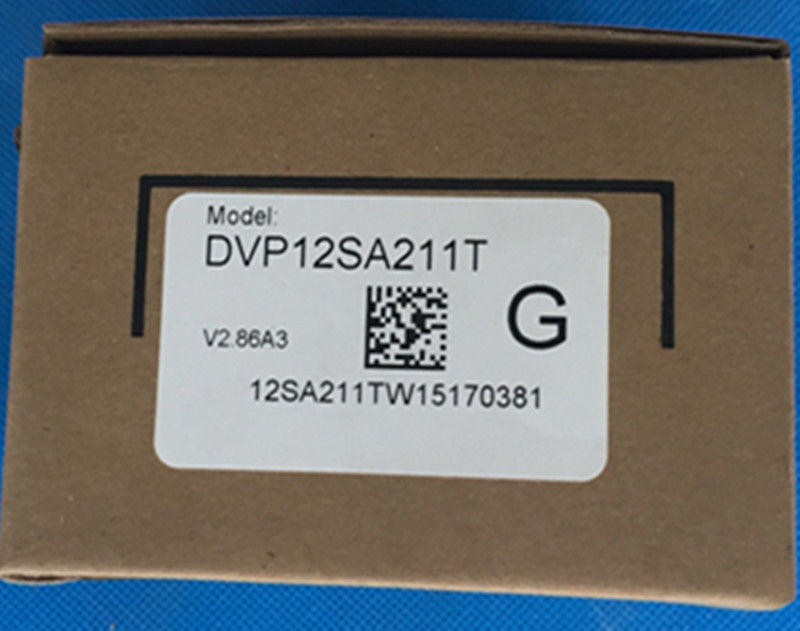

DVP12SA211T
DO 4 Transistor
Payment : we only accept Paypal for online shopping.
shipment:We use DHL,EMS as shipment method in normal.
Guarantee:1 year quality warranty.
We ship to over 200 countries worldwide!
