BM09DFcompatible LCD display 9 inch for E64 M64 M300 CNC system CRT monitor
BM09DFCRT monitors, for 9-inch single amber CRT monitors, Mitsubishi CNC systemcommonly used in the M3 M310 E60 M64 M64S C64 used in the system.
I can also offer the monitor for M500 M520 CNC system.You can find from the store.
MitsubishiBM09DF, Mitsubishi M64 E60 CNC machine tools display system parameters:
1,CRT (cathode ray tube) size 9-inch, 90-degree view angle, Neck Diameter 20mm,color: amber-proof standard: T-Band Standard
2,the signal input: analog video signal (n) 0 - 2.3V, the horizontal line stepwaysync, TTL digital signal (positive polarity), field-step approach verticalsync, TTL digital signal (positive polarity)
3,scanning frequency: Line Frequency H = 24Khz, field frequency V == 50.5Hz
4,the video display size: horizontal 160mm +/- 3mm, vertical 110mm +/- 3mm
5.Power: AC100-230V (50 / 60Hz)
6,the signal input: VIA Standard 10 PIN EDGE connector
OriginalBM09DF CRT monitors as follows:

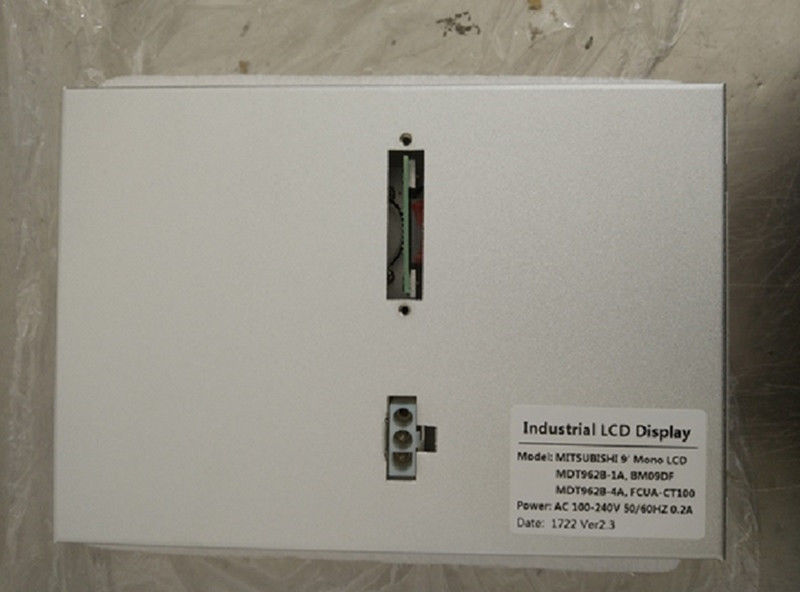

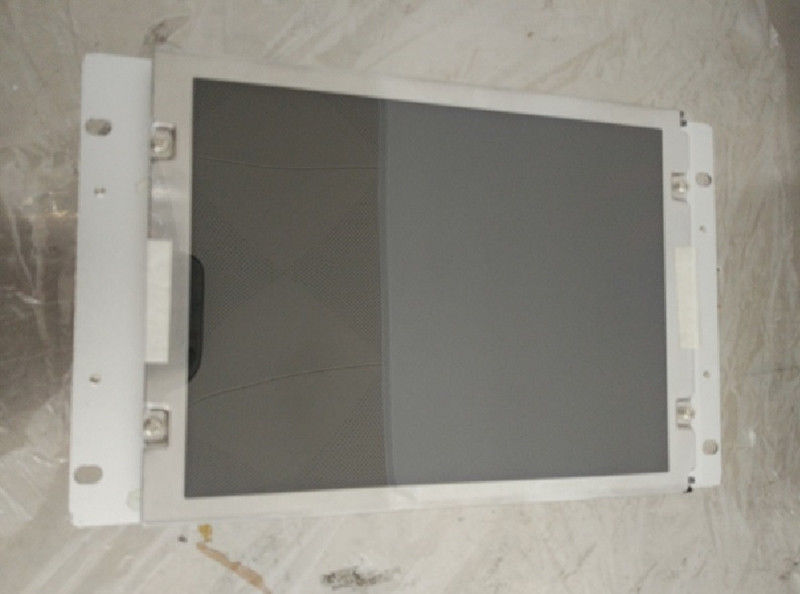

The replacement LCD display as follows:
How to install:
Displaying test:
