A61L-0001-0074compatible LCD display 14 inch for CNC machine replace CRT monitor
Fanuc A61L-0001-0074 display, is theearliest in FANUC, installed in the Fanuc 6 series or Fanuc 10, Fanuc 11, Fanuc12 in control system and on labels, also called TX-1450ABA5, 14X59-1, which canbe directly replaced by the LCD monitor
The signal interface is HONDA MR-20M, andthe display is 14 inch color CRT display
The replacement LCD monitor specificationas follows:
1. support 15KHz to 48KHz frequency line signal,field frequency of 48Hz to 75Hz, the positive and negative automaticadaptation, input line field automatic frequency scanning.
2. support field input for digital TTLsignals or analog signals.
3. input interface: D-sub, 15PIN, BNCinterface and other interfaces, can be customized.
4. support black and white display,monochrome display, color display, true color display.
5., support automatic recognition of thescreen, adjust the width.
6. support separation of synchronous signalHV, composite synchronization signal Cs or synchronous signal compound in thevideo G signal (Sog), polarity, positive and negative are automaticallyidentified.
7.75-500 ohm high input impedance, suitablefor all kinds of strong and weak signal source
Technicalparameters of industrial screen:
| Type | KTV148 RGB EGA CGA MDA Screen |
| Screen size | 246*184.4mm(length*width),12.1 inches,4:3 |
| Sweep range | H-row scanning: 15Khz-48Khz Plus-n-minus auto-adaptation |
| V-row scanning: 48hz-75hz Plus-n-minus auto-adaptation |
| Input signal | Signal source types | MDA,CGA,EGA,VGA RGB,RGsB,RGBS,RGBHV signals |
| Synchronization method | HV row filed separation, HV row field mix Cs, green segregation Sog |
| TTL digital level: 2.4 ~ 5.0V or Low 0.0 ~ 0.8V Analog model level: 0.7-2.5VP-P |
| Input resistance | 75-500 O high input impedance which can adapts to various signal sources. |
| Scanning mode | Interlaced scanning/ sequential scanning |
| Signal line | 9-pin signal line (optional), 15-pin signal line, BNC input |
| Screen colors | 262K, monochromatic, black-and-white |
| Contrast | 450: 1 |
| Brightness | 400 cd/m2 (Typ.) |
| Response time | 15/30 (Typ.)(Tr/Td) (ms) |
| Working conditions | Temperature: -10 ~ +65, humidity: 20% ~ 95% |
| Storage conditions | Temperature: -30 ~ +70, humidity: 10% ~ 95% |
The Old CRT monitor A61L-0001-0074TX-1450ABA5 as follows:
2nd, Remove the old CRT displayand empty the original CRT position. See below

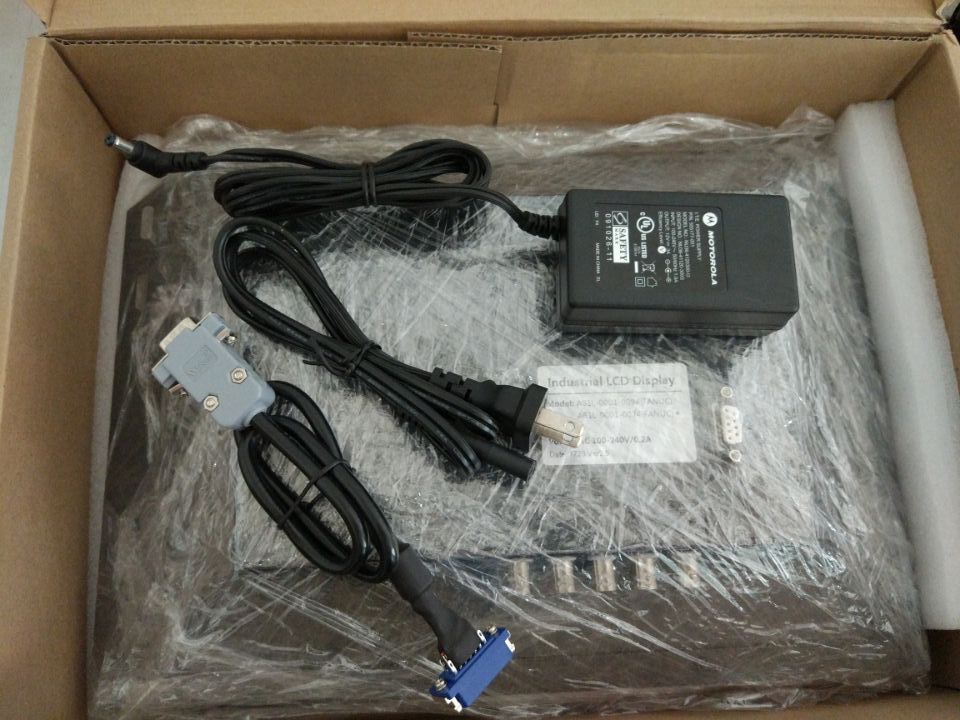

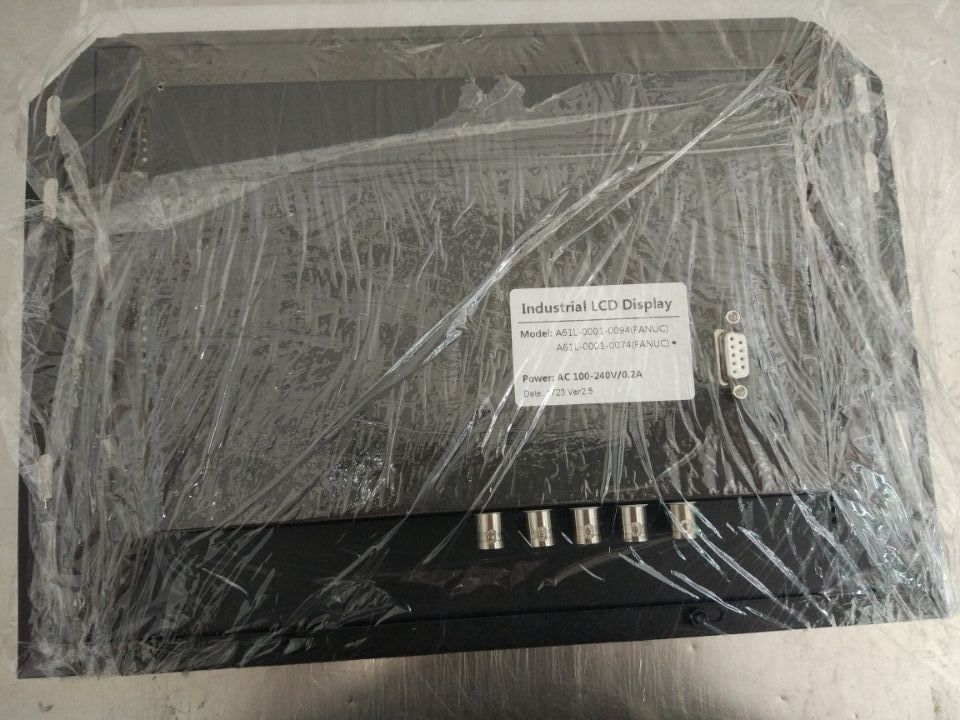

The new LCD directly installed, thecorresponding fixed screw holes, the signal wire is inserted, connect the powerline can be, some parameters can be obtained by OSD display menu displayoptimization, thus completing the CRT replacement for A61L-0001-0074 liquidcrystal process.
Our products all adopt imported industrialLCD panel and power supplies from companies such as SHARP & AUO to ensuresthat it has a long service life, low failure rate, suitable for workingcondition of continuous use of 24 hours, without daily maintenance, withexactly same mechanical size of the original hole site, and can quickly restoreproduction as long as to plug in the signal interface and power interface.Compared with the original CRT monitor, LCD monitor has advantages of simplestructure, lower power consumption, little daily breakdown, strong vibrationresistance, strong electromagnetic interference resistance, simple maintenance,light weight, and easier to standardization, etc.
All models are of regular stock to ensurerapid delivery and some special use display can be customized.
