3phase 220V 2000w 2kw 7.7N.m 2500rpm 130mm AC servo motor drive kit 2500
  • 3phase 220V 2000w 2kw 7.7N.m 2500rpm 130mm AC servo motor drive kit 2500
  • 3phase 220V 2000w 2kw 7.7N.m 2500rpm 130mm AC servo motor drive kit 2500
  • 3phase 220V 2000w 2kw 7.7N.m 2500rpm 130mm AC servo motor drive kit 2500

3phase 220V 2000w 2kw 7.7N.m 2500rpm 130mm AC servo motor drive kit 2500

  • Model: LCMT-20L02NB-130M07725B+LCDB2-20
  • Shipping Weight: 1g
  • 28 Units in Stock

£344.00
Sale: £316.48
Save: 8% off


Add to Cart:




3phase 220V 2000w 2kw 7.7N.m 2500rpm 130mmAC servo motor drive kit 2500ppr with 3m cable



Package including:

Product

Specification

Quantity

LC 2000w servo motor

LCMT-20L02NB-130M07725B

1

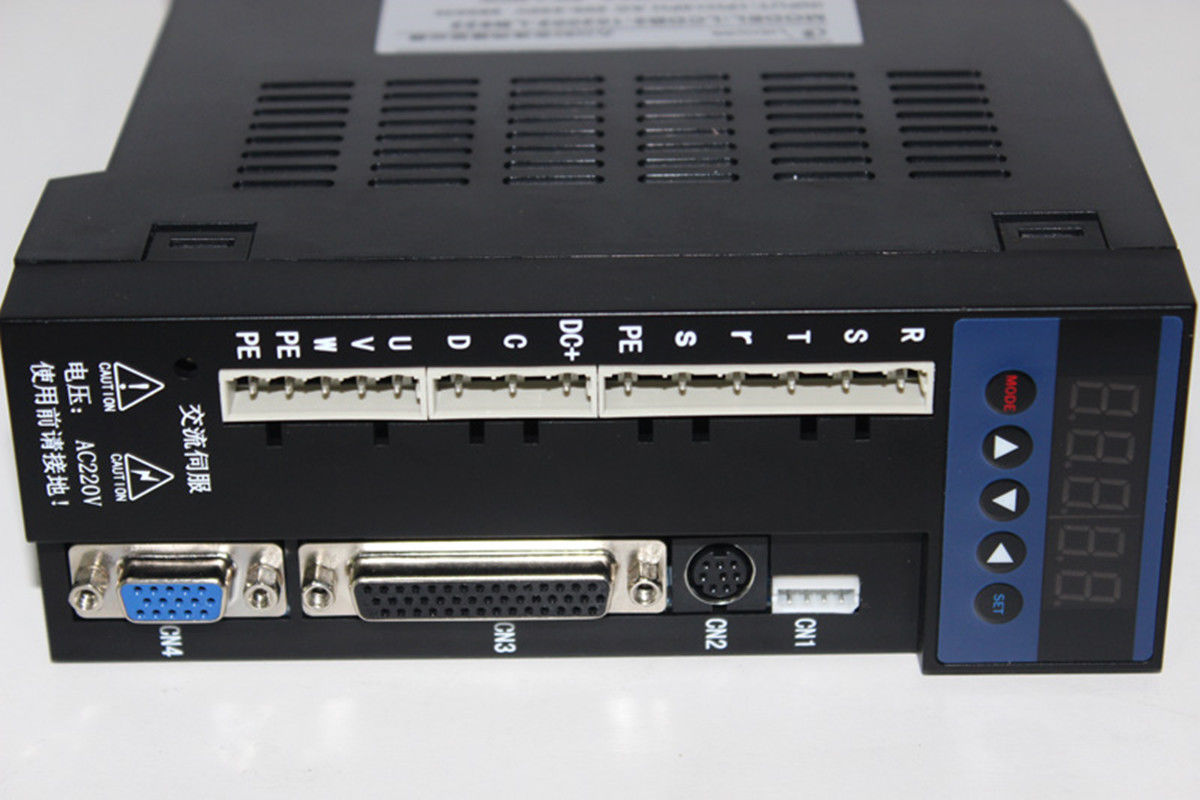

LC 2000w servo drive

LCDB2-203002-LB1332

1

Servo power cable

Standard configuration (3m)

1

Servo encoder cable

Standard configuration (3m)

1



If you need the servo motor with brake,please contact with us.

If you need longer cable for this servosystem, please write us .we can offer 5m,10m,15m,20m length cables.

Please leave your email address to get theuser manual of the servo driver if you need.



 Lichuan Servo MotorNaming Rules

   LCMT - 02 L 02 N B - 60 M006 30 B



·        LCMT--- Product information

·        02-------- 200W ( 04---400W/  07---750W /  10---1KW )

·        L---------- Motor inertia ( L---low /M---middle )

·        02-------- Sensing form ( 01---line savingencoder 2500     02---15 type encoder 2500 )

·        N---------- Without brake (Z---with brake )

·        B--------- only keyway no oilseal ( A---only oil seal no keyway  C---oil seal and keyway )

·        60-------- Frame size

·        M006---  Torque

·        30-------- Speed

·        B---------  B series ( A--- A series /C--- C series )



Lichuan Servo Driver Naming Rules



    LCDB2 - 02 20 02 - L B 6 22



·        LCDB2-- Product information

·        02-------- Motor power  (02---200W 04---400W /  07---750W /  10---1KW... )

·        20-------- Peak current ( 20---20A / 30---30A/ 50---50A / 75---75A )

·        02-------- Encoder information ( 01---linesaving encoder  / 02---15 type encoder )

·        L---------- Motor inertia ( L---low /M---middle )

·        B---------Driver series (A---A series / B---B series / C---C series )

·        6--------- Frame size ( including 6 /  8  /  9  /  110 ... )

·        22-------- Voltage ( 22---single phase 220v /32---3 phase 220v / 34---3 phase 380v )



2000W servo Motor LCMT-20L02NB-130M07725B Parameters Overviews

Motor Model

LCMT-20L02NB-130M07725B

Brand

Lichuan

Frame Size

130 mm * 130 mm

Motor Length

192 mm

Shaft Diameter

22mm

Driving Voltage

3 Phase 220V

Rated Torque

7.7N.M

Rated Speed

2500  RPM

Positioning Accuracy

0.01 mm

Encoder

2500ppr

Weight

10kg

Matched Driver

LCDB2-203002-LB1332




1500W Servo Driver LCDB2-153002-LB1332 Features

1. Power Range: 1.5kw 1500w

2. Input Voltage: AC 200V-230V , 3 phase

3. Position / Speed control mode

4. With MODBUS communicationperformance(RS-485 / RS-422 / RS-232),

   ASCII and RTU communication protocol

5. Encoder: 2500ppr
